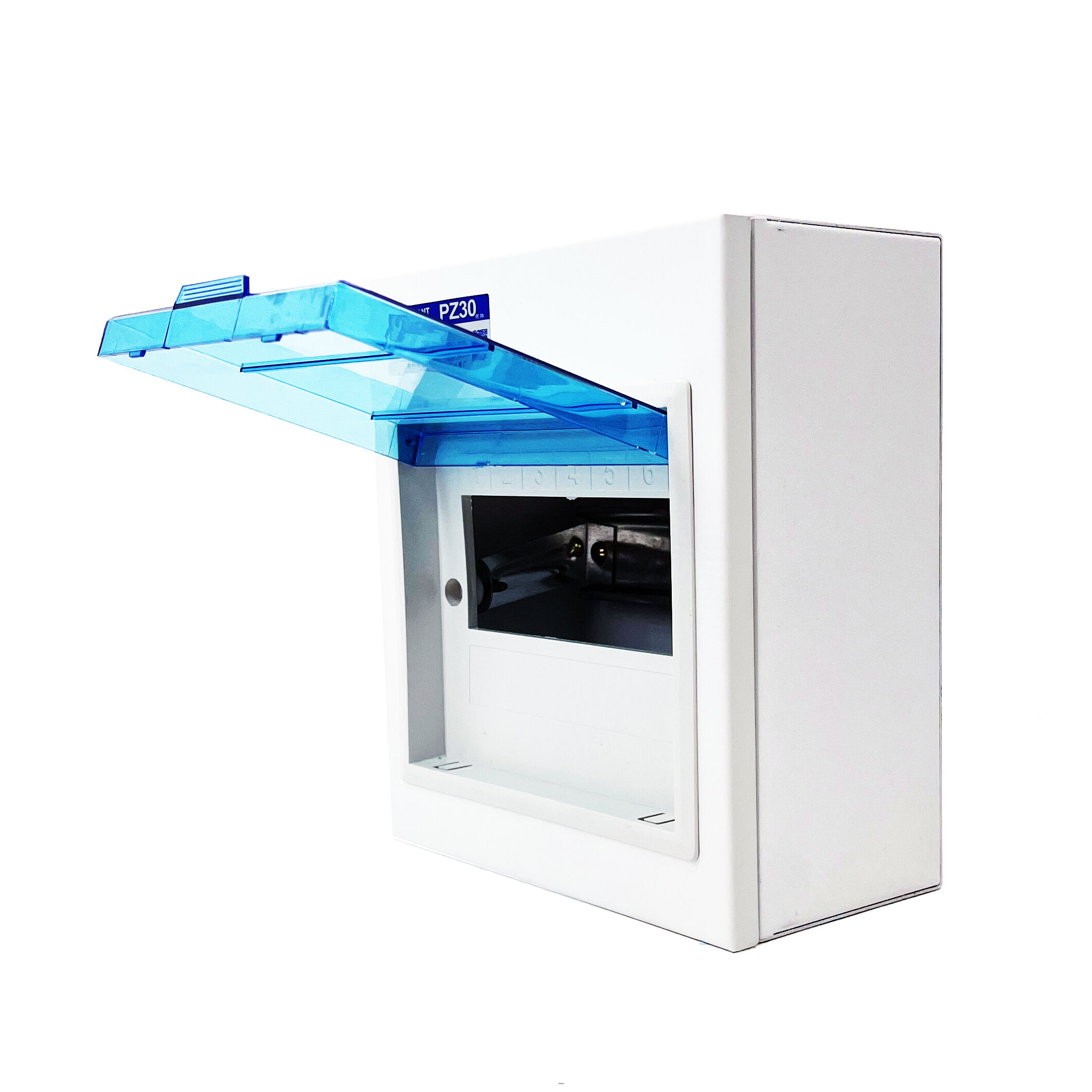

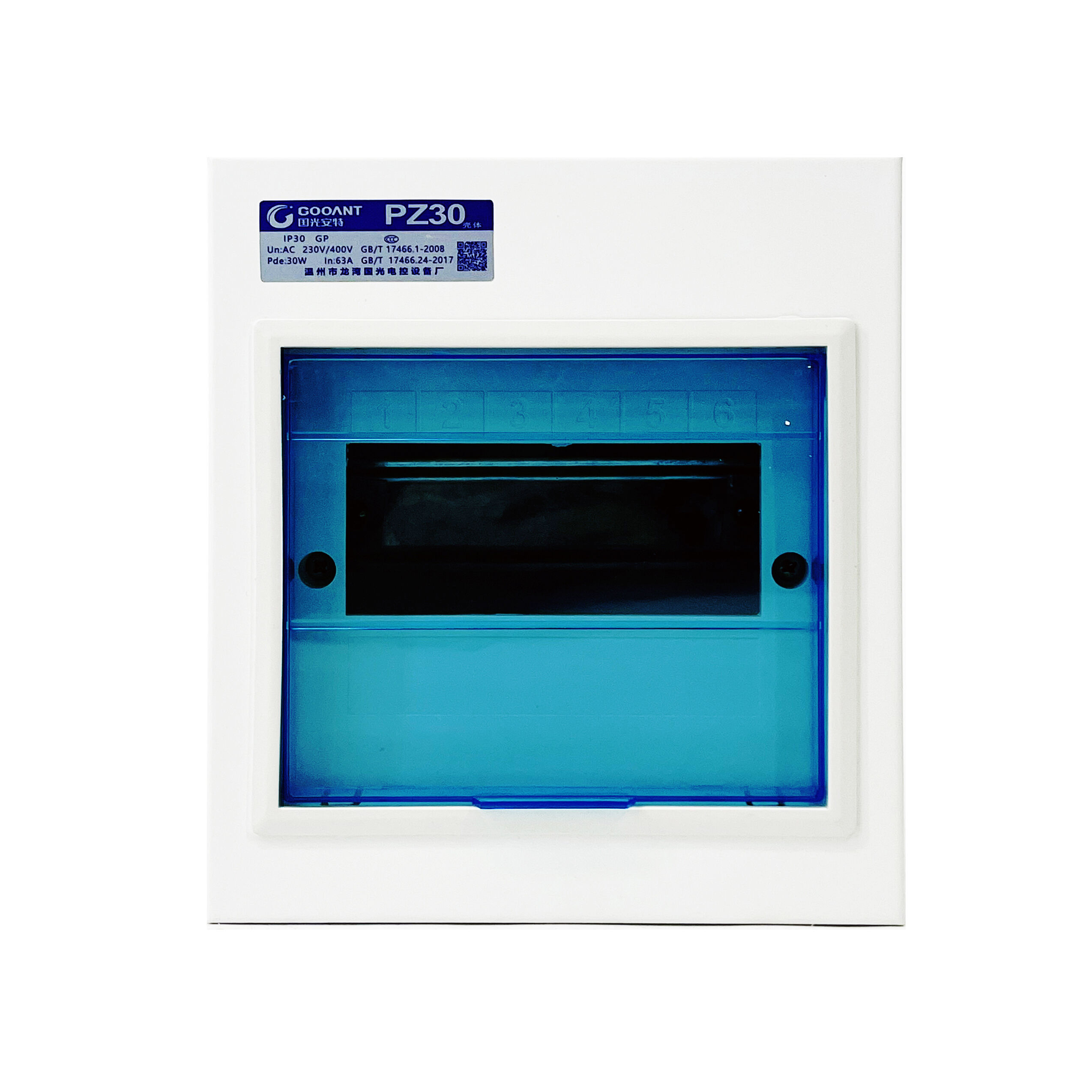

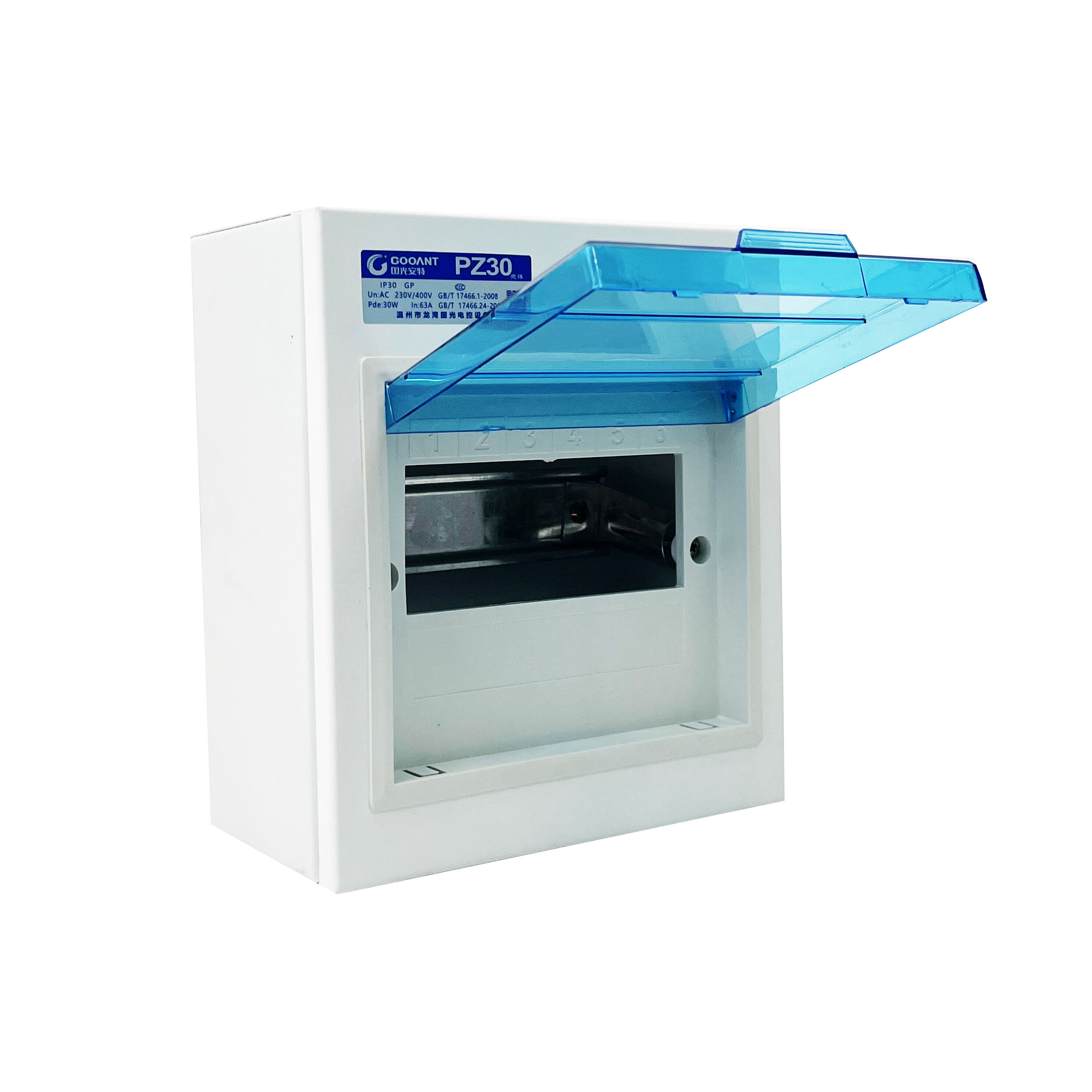

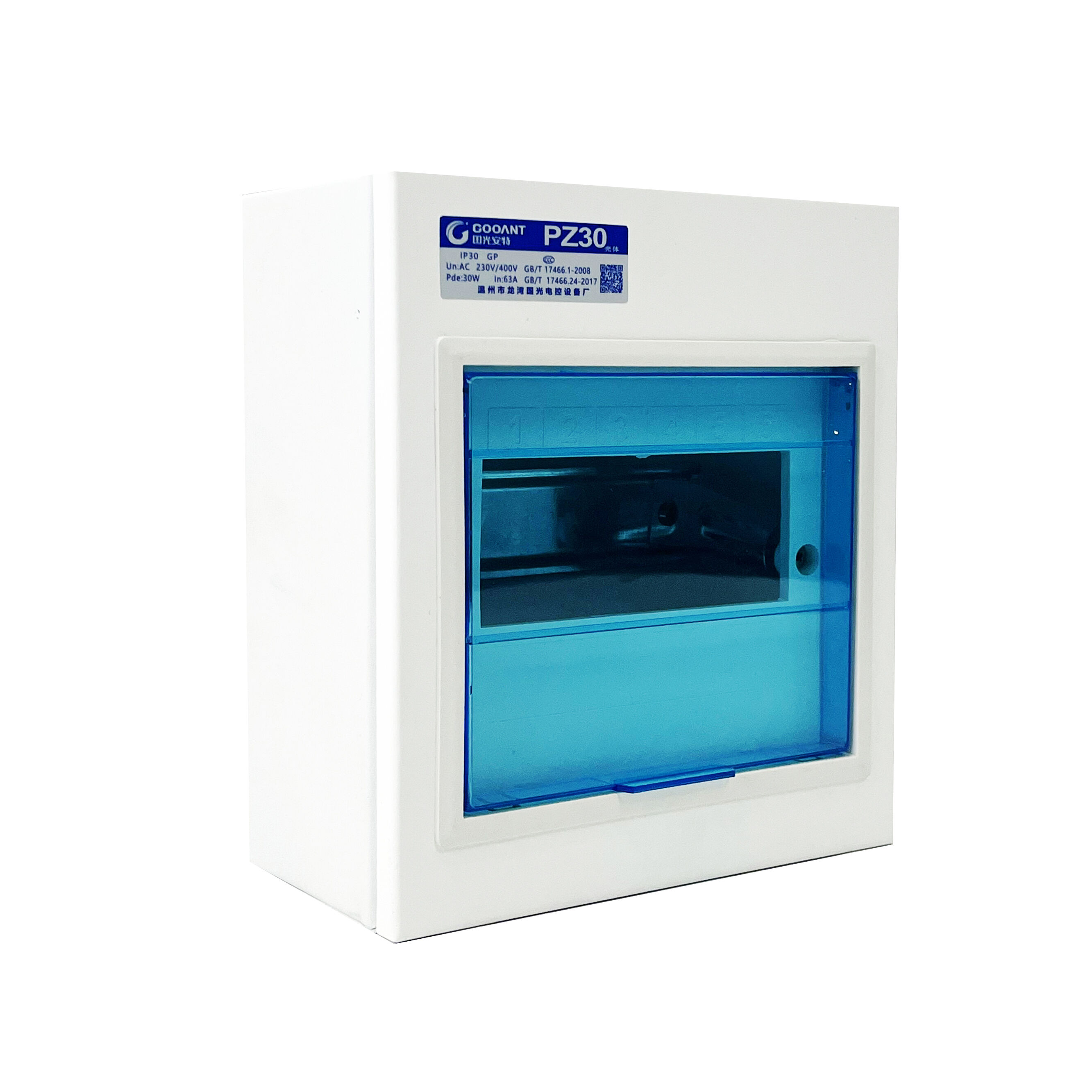

PZ30 6 loop Patent type(1.0)

Product Details
Related products

Parameter

Item	Specification
Model	PZ30 6 loop Patent type(1.0)
OEM/ODM/OBM	OEM
Dimensions (LWH)	20323890 mm (default unit, adjustable if needed)
Surface	smooth powder-coated finish
Material	Galvanized Steel Sheet + PC Plastic
Application	/
Minimum Order Quantity (MOQ)	20 Pcs

Advantage 1: Superior Flame Retardancy and Safety
Description: The enclosure is constructed from an engineering-grade PS+PC composite material, possessing excellent self-extinguishing properties and high impact strength. It complies with stringent safety standards, effectively curbing the risk of electrical fires and providing inherent safety.

Advantage 2: Flexible Modular Configuration
Description: The series offers a variety of circuitway options from 5 to 16 ways, supporting a broad current range from 100A to 200A. This flexibility allows you to easily configure a power distribution solution that precisely matches your project's requirements, much like building with blocks.

Advantage 3: Durable and Robust Protection
Description: With a standard IP30 protection rating, it effectively prevents the ingress of solid foreign objects larger than 2.5mm and the accumulation of daily dust. This ensures the long-term stable operation of internal electrical components even in demanding environments.

Advantage 4: Streamlined Installation Design
Description: The concealed installation design offers a neater appearance and saves space. The user-friendly enclosure structure and clear markings make installation, wiring, and subsequent maintenance simpler and more efficient.

About the Material: The PC material provides extremely high impact resistance and toughness, while the PS material enhances structural rigidity and optimizes cost. Their combination, aided by flame retardants, achieves a perfect balance of safety, durability, and economy.

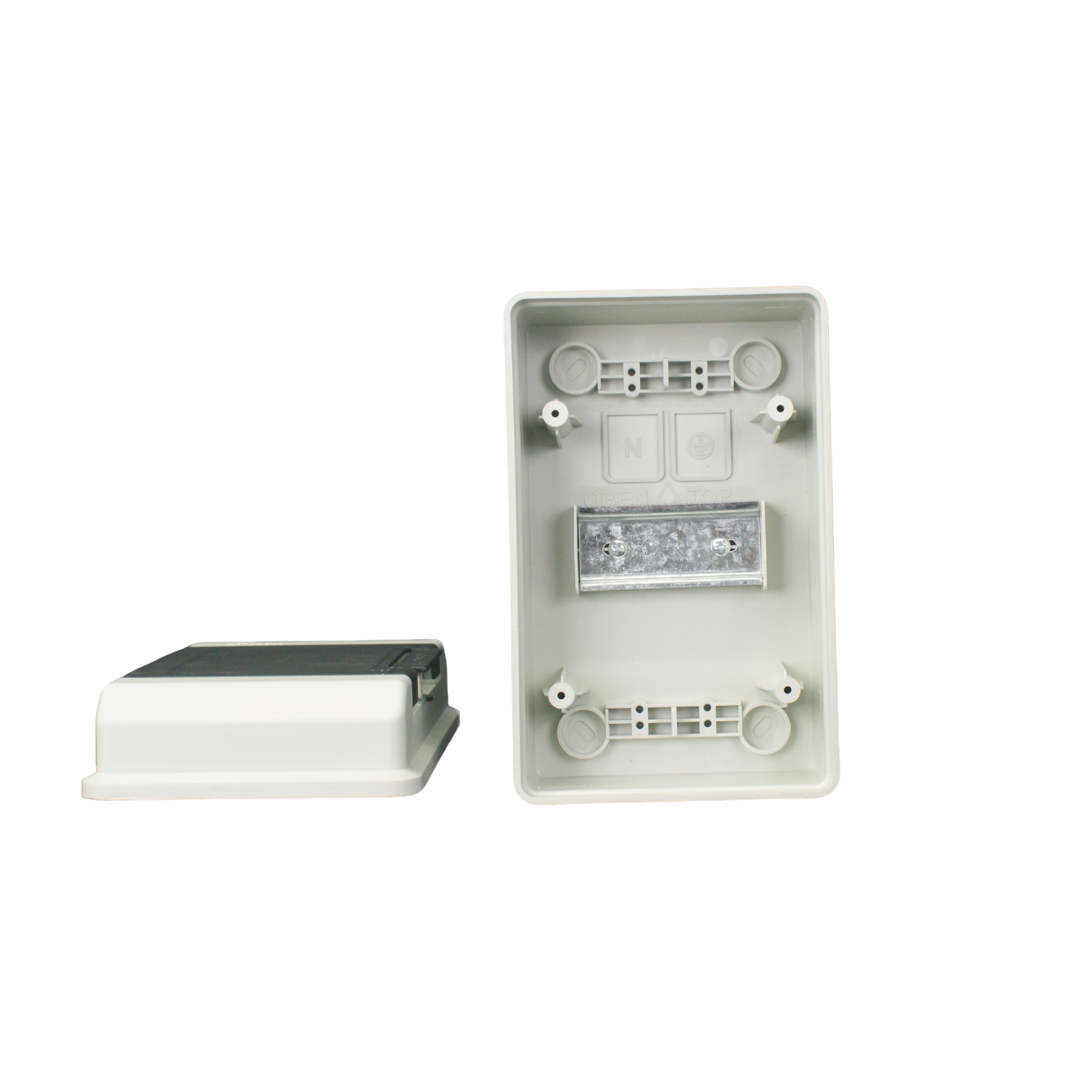

About the Design: The internal layout of our enclosures is meticulously calculated, reserving ample space for wiring and mounting rails for circuit breakers. This ensures proper airflow, reduces heat buildup, and supports potential future circuit expansion needs.

Application Scenarios:

Residential & Apartments: Safely and neatly manage household electrical circuits. An ideal choice for home circuit renovations and new residential constructions.

Commercial Stores & Offices: Provides an organized power distribution hub for multiple loads such as lighting, air conditioning, sockets, and signage.

Small Factories & Workshops: Offers reliable electrical distribution protection and isolation for machinery, production lines, and lighting systems.

Sheltered Outdoor Environments: Serves as a power distribution node for critical equipment in covered outdoor locations like under canopies or at telecom base stations.

FAQ：

Q: Are the dimensions consistent across different models?
A: No, the dimensions vary depending on the number of circuit ways (loops). Please refer to the detailed dimensional drawings on the specific product page or contact us for accurate diagrams.

Q: Does the enclosure include internal circuit breakers?
A: No, it is supplied as a standard empty distribution box enclosure. Internal components such as MCBs (Miniature Circuit Breakers) and RCCBs (Residual Current Circuit Breakers) must be procured separately based on your electrical design. We can also provide suggestions for compatible components.

Q: Can it be used in a three-phase five-wire system?

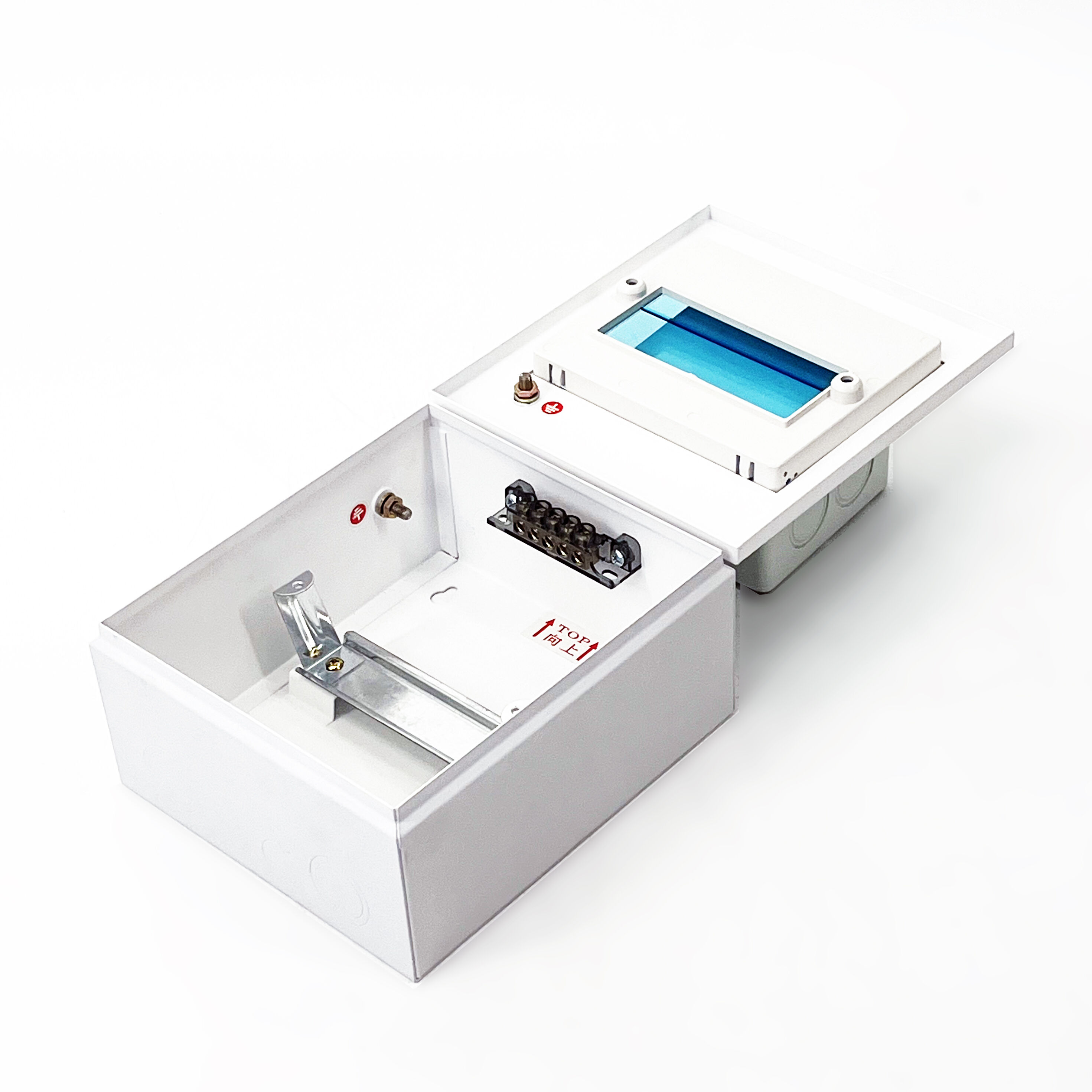

A: Yes. This series of distribution boxes is suitable for standard single-phase and three-phase power distribution systems. The enclosure has reserved mounting positions for both the neutral bar and the earth (grounding) bar.
