Exempt from removing the cover to adjust the lifting screw, adjustable up, down, left and right
Safety Protection
Guo Guangzhong special photoelectric safety protection provides intelligent peace of mind for home tube control
Multi‑directional Wiring Holes
Multi‑directional top pre‑wiring hole design for easy and tidy wiring
Dual‑row Wiring Copper Posts
Guo Guangzhong provides dual‑row wiring copper posts to make wiring more orderly
Exquisite and Versatile Life Scenes
Suitable for various life scenarios, meeting all your needs
▼
Residential Communities
Shopping Malls / Commercial Complexes
Office Buildings / Business Spaces
Residential Quarter
RESIDENTIAL QUARTER
Shopping Mall
SHOPPING MALL
Industrial Plant
INDUSTRIAL PLANT
Installation Example
Elegant and aesthetically pleasing appearance
Suitable for various sce‑ narios

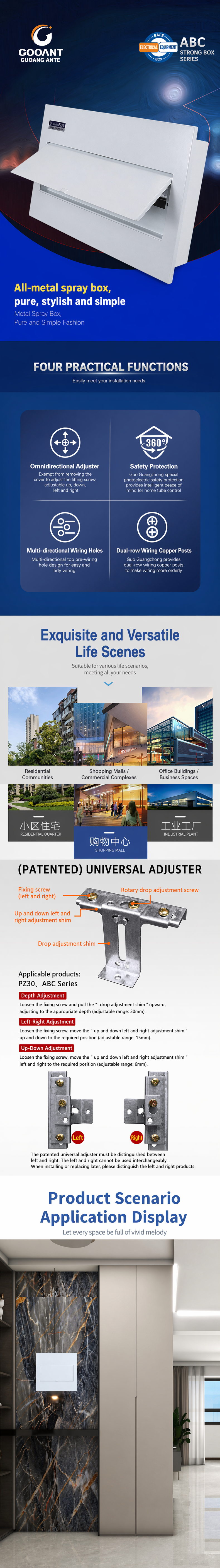

(PATENTED) UNIVERSAL ADJUSTER
Fixing screw (left and right)
Rotary drop adjustment screw
Up and down left and right adjustment shim
Drop adjustment shim
Applicable products:
PZ30、ABC Series
Depth Adjustment
Loosen the fixing screw and pull the " drop adjustment shim " upward, adjusting to the appropriate depth (adjustable range: 30mm).
Left‑Right Adjustment
Loosen the fixing screw, move the " up and down left and right adjustment shim " up and down to the required position (adjustable range: 15mm).
Up‑Down Adjustment
Loosen the fixing screw, move the " up and down left and right adjustment shim " left and right to the required position (adjustable range: 6mm).
The patented universal adjuster must be distinguished between left and right. The left and right cannot be used interchangeably . When installing or replacing later, please distinguish the left and right products.

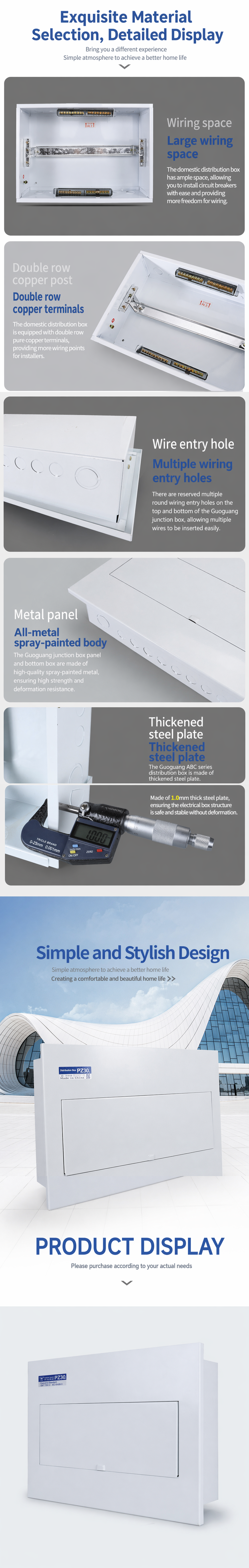

Exquisite Material & Detail Display
Bring you a different experience
Simple atmosphere to achieve a better home life
Wiring space
Large Wiring Space
Guoguang Ante distribution box has large‑capacity inner space, you can install circuit breakers freely and arrange wiring more flexibly.
Double row copper post
Double‑Row Copper Terminal Posts
Guoguang Ante is equipped with double‑row pure‑copper large‑current terminal posts, helping installers finish wiring work efficiently.
Wire entry hole
Multiple Cable Entry Holes
Multiple pre‑pressed circular holes are reserved on top and bottom of box base. Knock out lightly for multi‑cable incoming connection.
Metal panel
Full‑Metal Powder‑Coated Enclosure
Both panel and base of Guoguang Ante ABC series boxes adopt electrostatic powder‑coated metal. High‑strength, anti‑deformation under compression.
Thickened steel plate
Thickened Steel Plate
Guoguang Ante ABC‑series distribution boxes adopt 1.0mm thick steel plate, making cabinet structure stable and non‑deformable.
Product schematic diagram
Front appearance
Internal structure
Side and back views

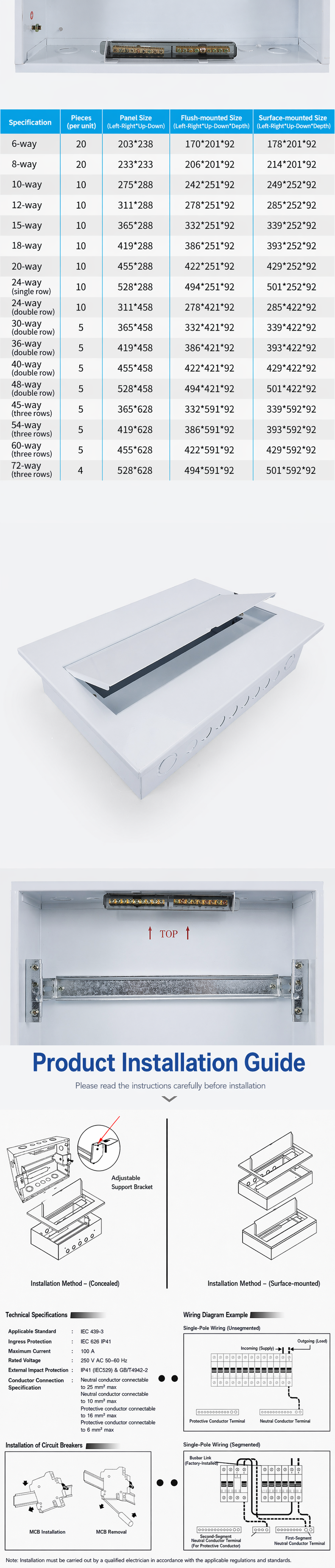

PRODUCT INSTALLATION GUIDE
Please read the instructions carefully before installation
Installation Method – (Surface Mount)
Adjustable mounting bracket
Installation Method – (Flush Mount)
Technical Parameters
Standards
: IEC 439‑3
Degree of protection
: IEC 526 IP41
Rated current
: 100 A
Rated operational voltage
: 250 V AC 50‑60 Hz
External protection rating
: IP41 (IEC529 and GB/T4942‑2)
Terminal specifications
: Neutral terminal connection for copper conductors 25 mm²
Neutral terminal connection for copper conductors 10 mm²
Ground terminal connection for copper conductors 16 mm²
Protective conductor terminal connection for copper conductors 6 mm²
