HT series
Waterproof distribution box
HT full series live shooting

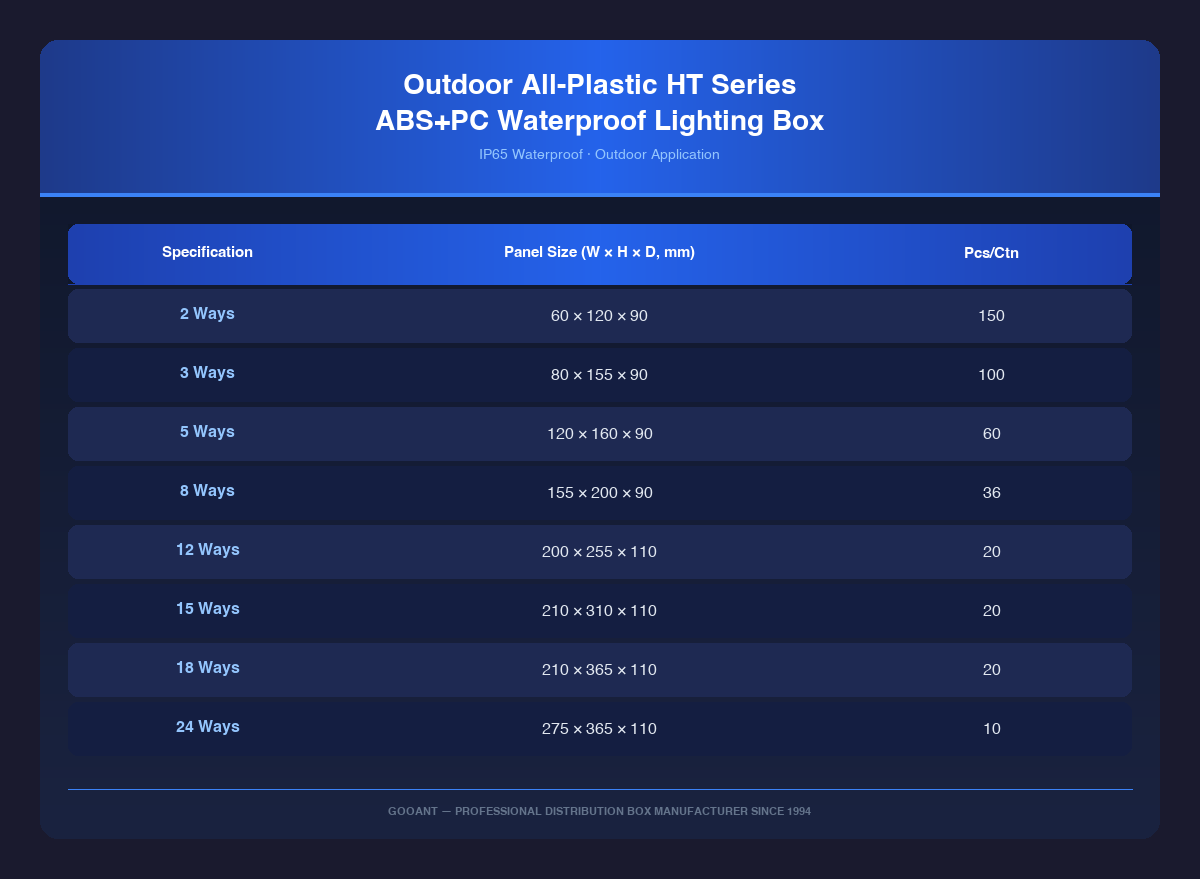

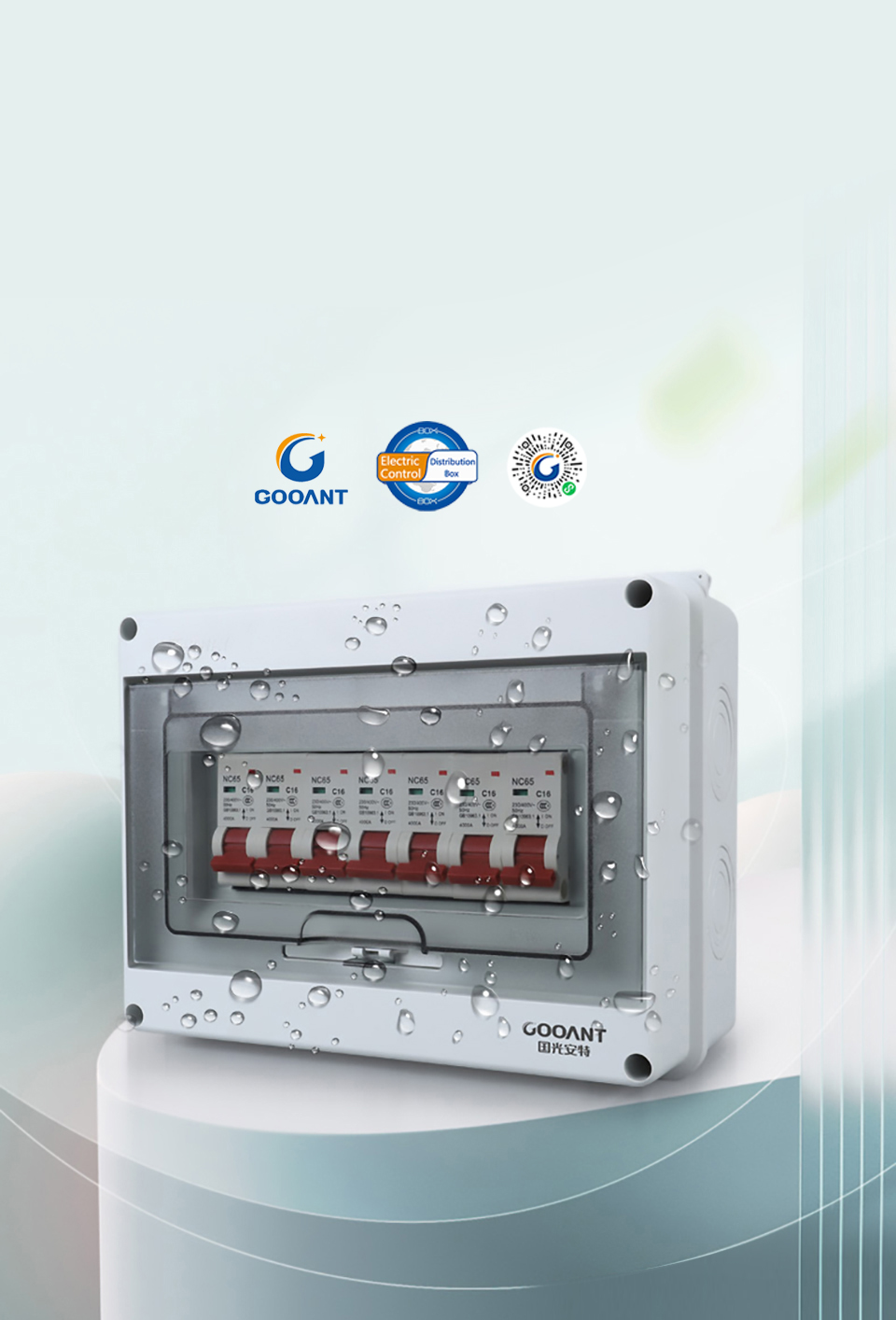

| Outdoor All‑Plastic HT‑Series ABS+PC Waterproof Distribution Box |
|---|
| Specification |
Panel Size |
Qty./Carton |
| 2‑way |
60*120*90 |
150 |
| 3‑way |
80*155*90 |
100 |
| 5‑way |
120*160*90 |
60 |
| 8‑way |
155*200*90 |
36 |
| 12‑way |
200*255*110 |
20 |
| 15‑way |
210*310*110 |
20 |
| 18‑way |
210*365*110 |
20 |
| 24‑way |
275*365*110 |
10 |
| 36‑way |
530*290*110 |
10 |
Sealing Rubber Ring
Sealing rubber ring
Made of premium reinforced sealing material, high corrosion resistance for enhanced waterproof performance.
Inlet And Outlet Holes
Inlet and outlet holes
Pre-reserved holes on enclosure for convenient wiring, practical and easy to operate.
Internal Structure
Internal structure
Internal mounting rail for fixing terminal blocks & circuit breakers, simplifying your installation work.
Installation Column
Installation column
Dedicated installation columns on rear side, sturdy material to facilitate box mounting.
Snap Design
Snap design
Press to open quickly and easily, achieving superior waterproof performance.
Flame Retardant Shell
Flame retardant shell
High quality flame retardant material, prevents accidental fire and ensures safer use.
Complimentary Waterproof Plug
Complimentary waterproof plug
Free waterproof plugs included to upgrade waterproof capability for safer operation.
Product display
Can be installed both indoors and
outdoors Genuine materials, ensur‑
ing peace of mind when using
Core Quality
Improvement from Inside Out
Waterproof & Dust‑proof
Waterproof
IP65
Waterproof Rating
Waterproof grade
Snap‑fit Design
Snap design
Rubber Strip Sealing
Strip sealing
Flame‑retardant Material
Flame retardant
Safe & Sturdy
Safe and sturdy
Matte panel
Metal rails
Line entry and exit hole
Sealing rubber ring
Buckle Design
Mounting Hole
DETAIL SHOWCASE
QUALITY STANDS UP TO CLOSE INSPECTION
Fashionable & versatile, meets your demands in various scenarios, safeguards safety.
PERFORMANCE UPGRADE
MAKE LIFE MORE COMFORTABLE
Made of genuine materials, protect your family's safety, eco‑friendly & smart design.
Safe Waterproof
Waterproof Rating IP65
Suitable for special occasions requiring water and dust resistance, can be installed indoors and outdoors
PRODUCT INSTALLATION GUIDE
Please read the instructions carefully before installation
Installation Method – (Surface Mount)
Adjustable
mounting
bracket
Installation Method – (Flush Mount)
Technical Parameters
| Standards |
: IEC 439‑3 |
| Degree of protection |
: IEC 526 IP41 |
| Rated current |
: 100 A |
| Rated operational voltage |
: 250 V AC 50‑60 Hz |
| External protection rating |
: IP41 (IEC529 and GB/T4942‑2) |
| Terminal specifications |
: Neutral terminal connection
for copper conductors 25 mm²
Neutral terminal connection
for copper conductors 10 mm²
Ground terminal connection
for copper conductors 16 mm²
Protective conductor terminal
connection for copper conductors 6 mm² |
Circuit Breaker Installation
Installing the MCB
Removing the MCB
Wiring Diagram Examples
Single‑Phase Wiring (Unsegmented)
Three‑Phase Wiring (Segmented)
Note:
Reserve 2 positions for future use
