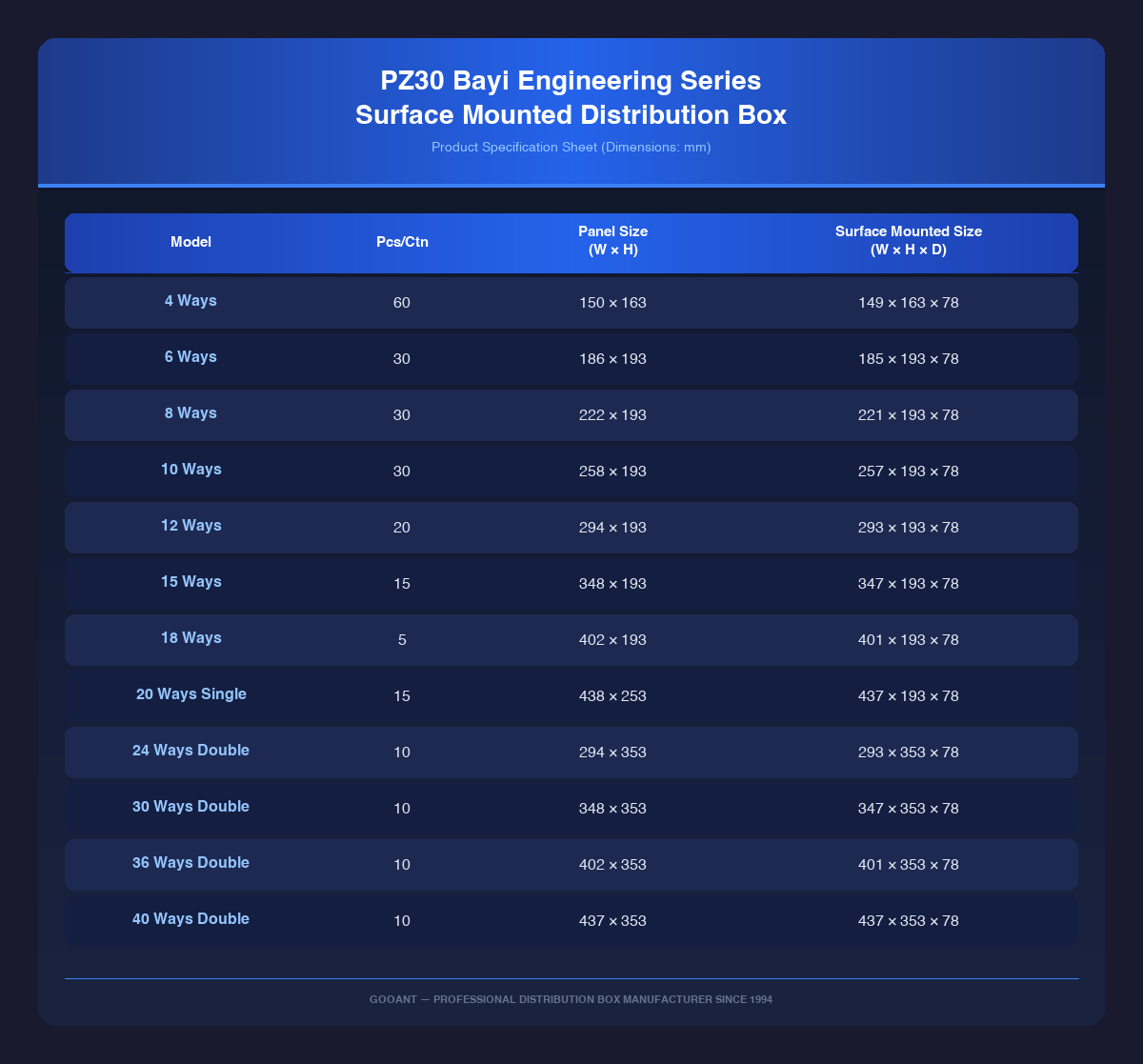

PZ30 bayi Series
Surface Mount
| Model |
Pcs/Box |
Panel Size
W*H |
Surface Mount Size
W*H*D |
| 4 Ways |
60 |
150*163 |
149*163*78 |
| 6 Ways |
30 |
186*193 |
185*193*78 |
| 8 Ways |
30 |
222*193 |
221*193*78 |
| 10 Ways |
30 |
258*193 |
257*193*78 |
| 12 Ways |
20 |
294*193 |
293*193*78 |
| 15 Ways |
15 |
348*193 |
347*193*78 |
| 18 Ways |
5 |
402*193 |
401*193*78 |
| 20 Ways Single Row |
15 |
438*253 |
437*193*78 |
| 24 Ways Double Row |
10 |
294*353 |
293*353*78 |
| 30 Ways Double Row |
10 |
348*353 |
347*353*78 |
| 36 Ways Double Row |
10 |
402*353 |
401*353*78 |
| 40 Ways Double Row |
10 |
437*353 |
437*353*78 |

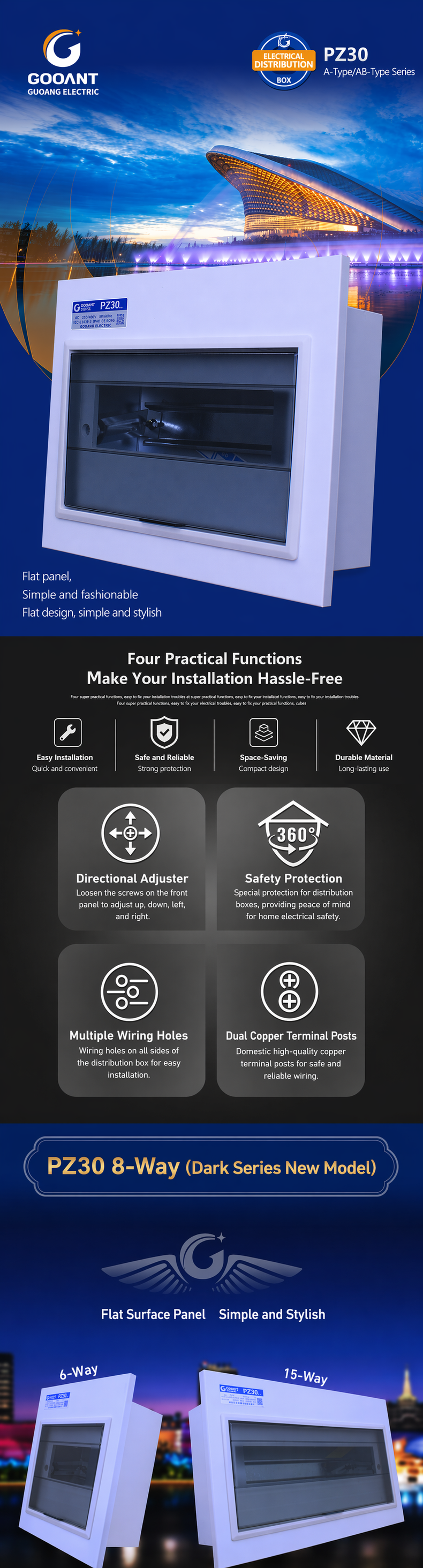

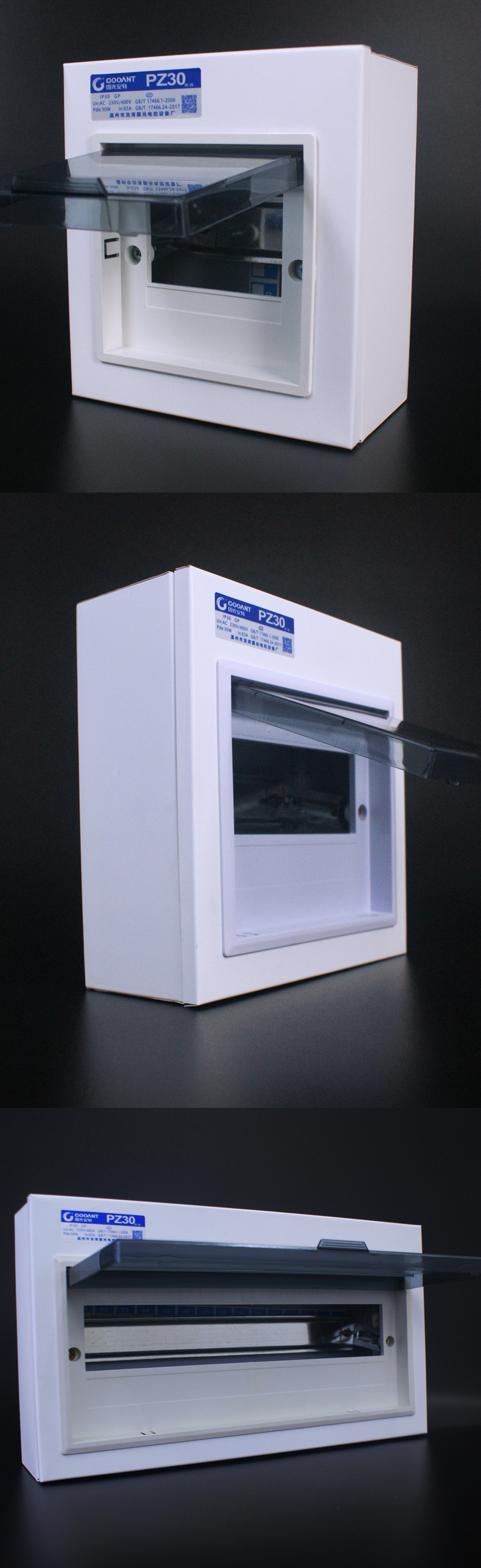

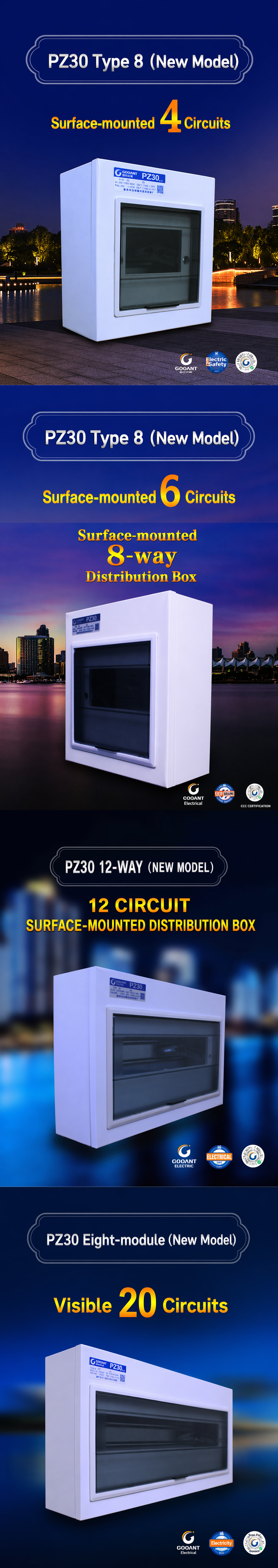

PZ30 bayi Surface Mount
Flat panel,Simple and fashionable
Four Practical Functions
Easily Solve Your Installation Troubles
Four super practical functions, easy to fix your installation troubles
Universal Adjuster
Universal Adjuster
No need to remove cover, adjustable up, down, left and right
Safety Protection
360° Safety Protection
Safe & intelligent control for home appliances
Multi‑direction Wiring Holes
Multi‑direction Wiring Holes
Pre‑reserved holes for fast & neat wiring installation
Double Row Terminal Posts
Double Row Copper Terminals
Standard copper terminals for easier wiring arrangement

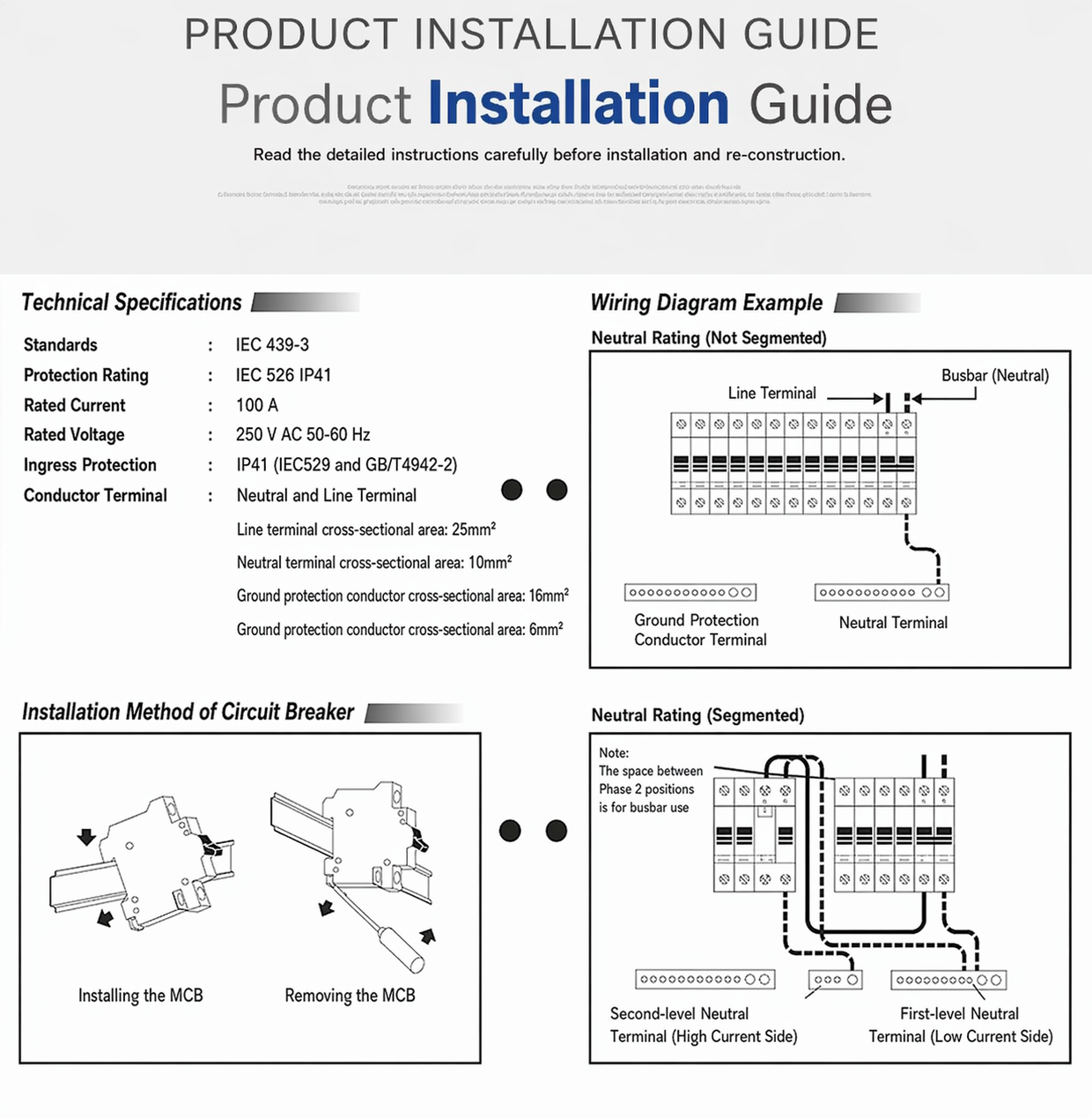

PRODUCT INSTALLATION GUIDE
Please read the instructions carefully before installation
Installation Method – (Surface Mount)
Adjustable
mounting
bracket
Installation Method – (Flush Mount)
Technical Parameters
| Standards |
: IEC 439‑3 |
| Degree of protection |
: IEC 526 IP41 |
| Rated current |
: 100 A |
| Rated operational voltage |
: 250 V AC 50‑60 Hz |
| External protection rating |
: IP41 (IEC529 and GB/T4942‑2) |
| Terminal specifications |
: Neutral terminal connection
for copper conductors 25 mm²
Neutral terminal connection
for copper conductors 10 mm²
Ground terminal connection
for copper conductors 16 mm²
Protective conductor terminal
connection for copper conductors 6 mm² |
Circuit Breaker Installation
Installing the MCB
Removing the MCB
Wiring Diagram Examples
Single‑Phase Wiring (Unsegmented)
Three‑Phase Wiring (Segmented)
Note:
Reserve 2 positions for future use
