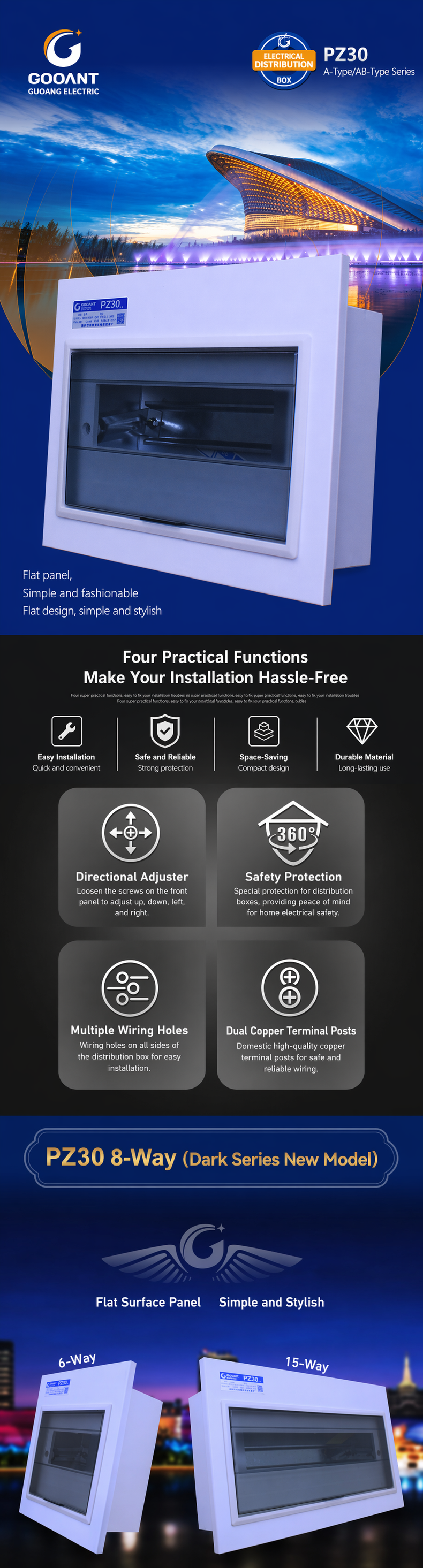

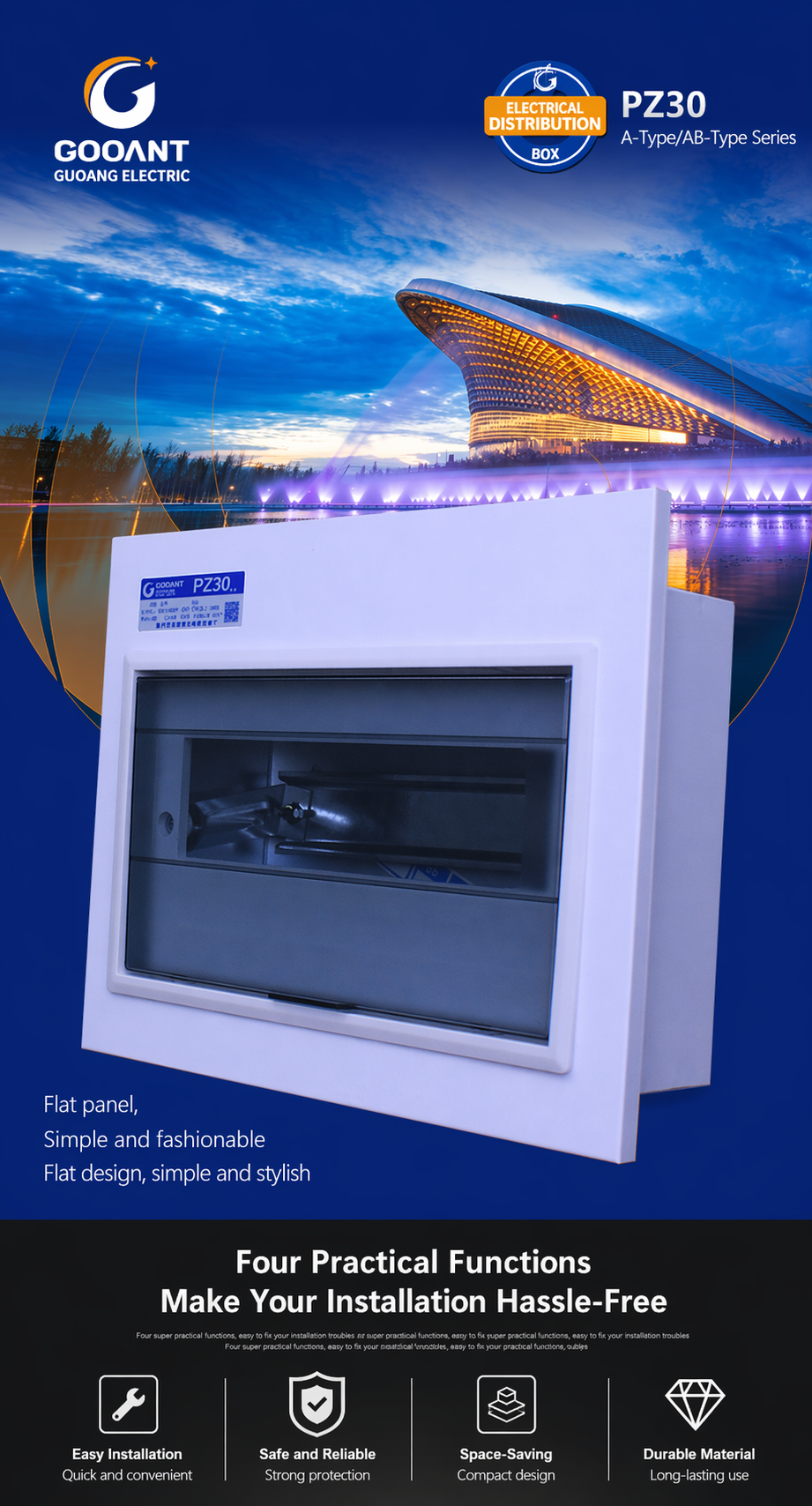

PZ30-81 Series Flush Mount Distribution Box

PZ30 bayi Series

Flat panel,
Simple and fashionable

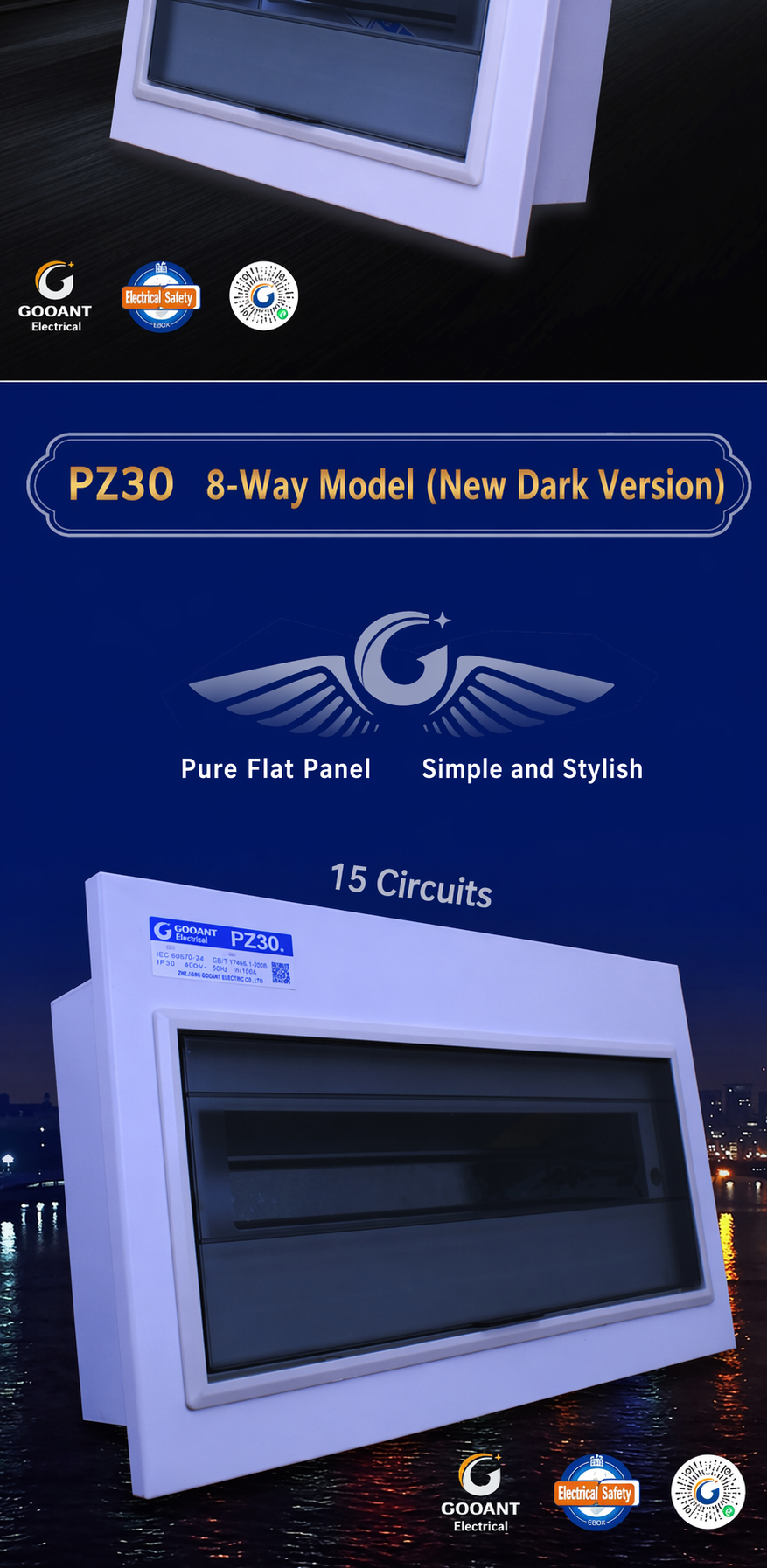

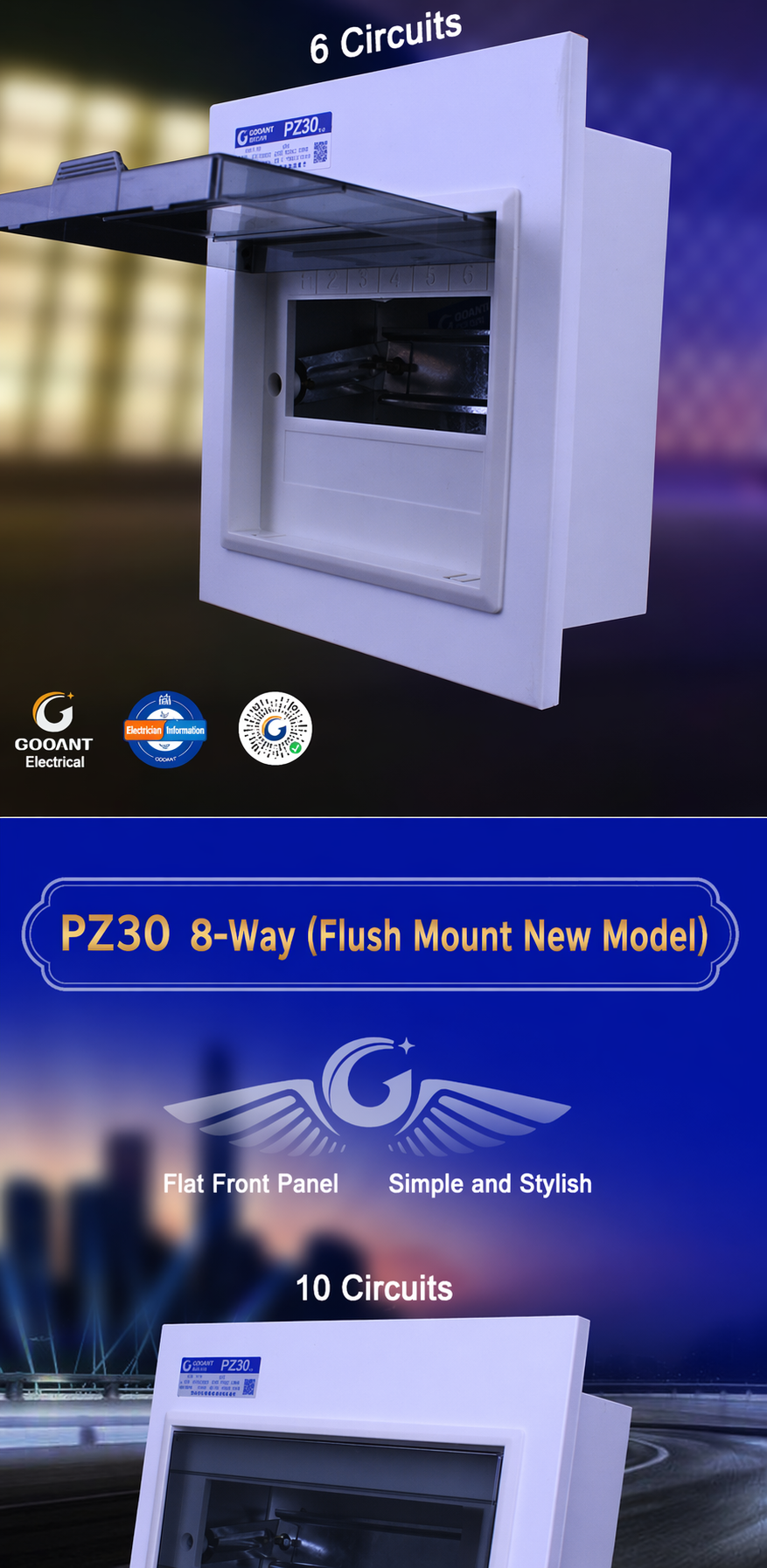

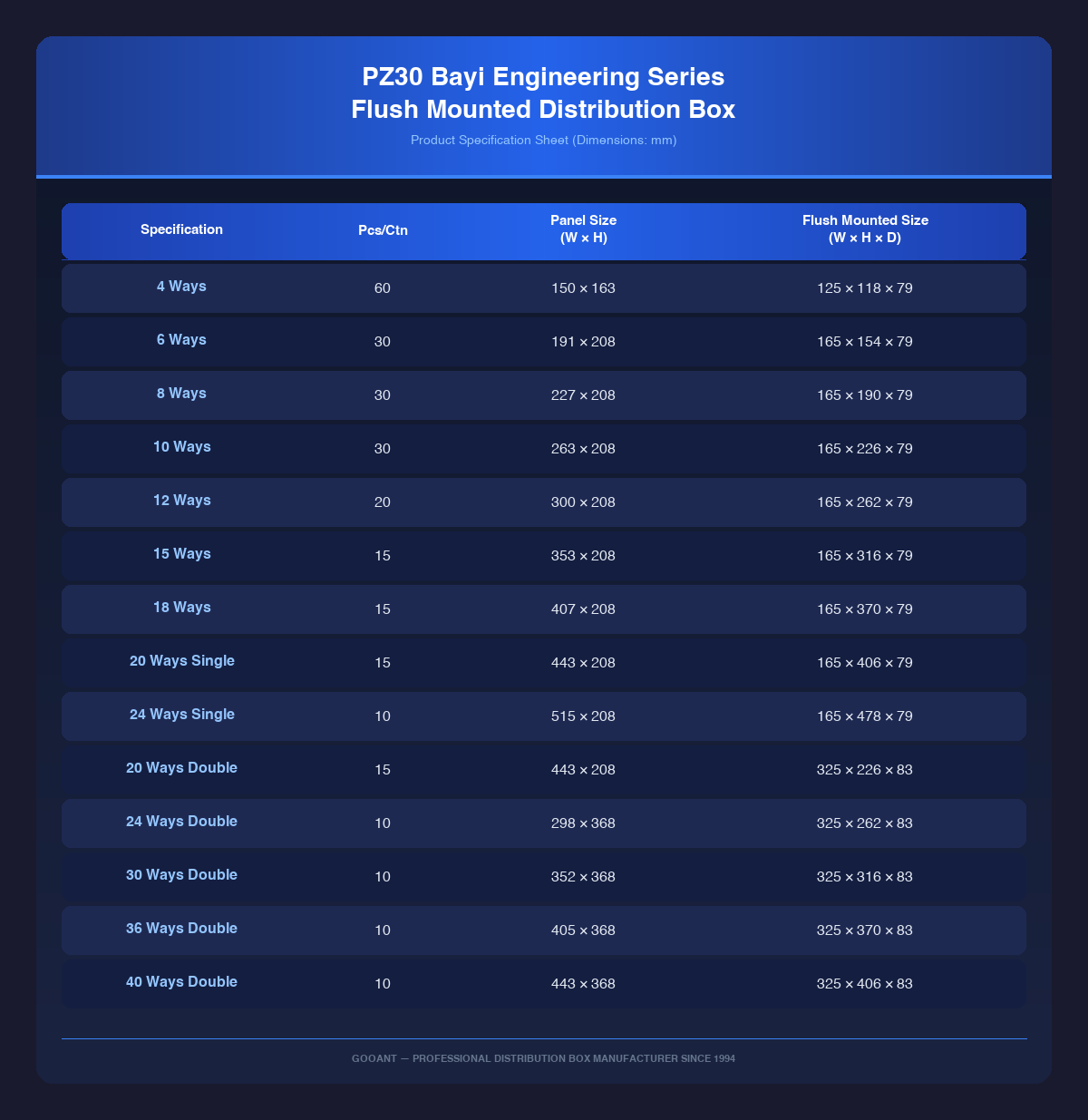

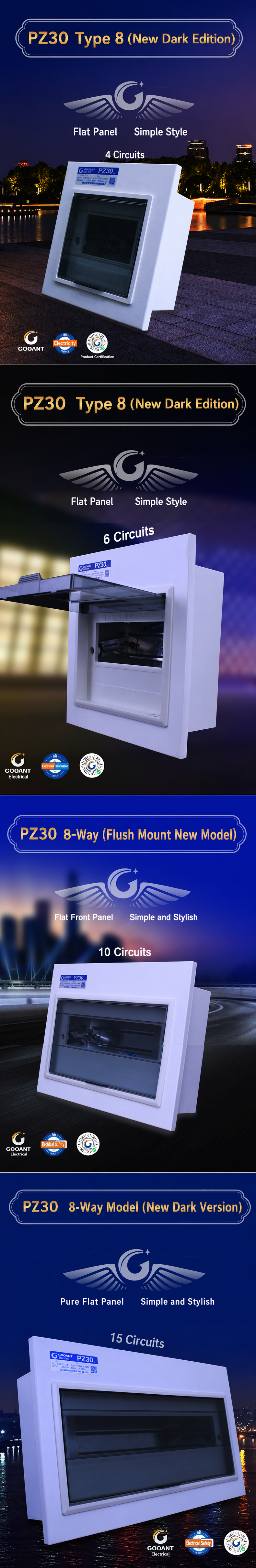

Spec	Pcs/Box	Panel Size W*H	Concealed Installation WHD
4 Ways	60	150*163	11812579
6 Ways	30	191*208	15416579
8 Ways	30	227*208	19016579
10 Ways	30	263*208	22616579
12 Ways	20	300*208	26216579
15 Ways	15	353*208	31616579
18 Ways	15	407*208	37016579
20 Ways Single Row	15	443*208	40616579
24 Ways Single Row	10	515*208	47816579
20 Ways Double Row	15	443*208	22632583
24 Ways Double Row	10	298*368	26232583
30 Ways Double Row	10	352*368	31632583
36 Ways Double Row	10	405*368	37032583
40 Ways Double Row	10	443*368	40632583

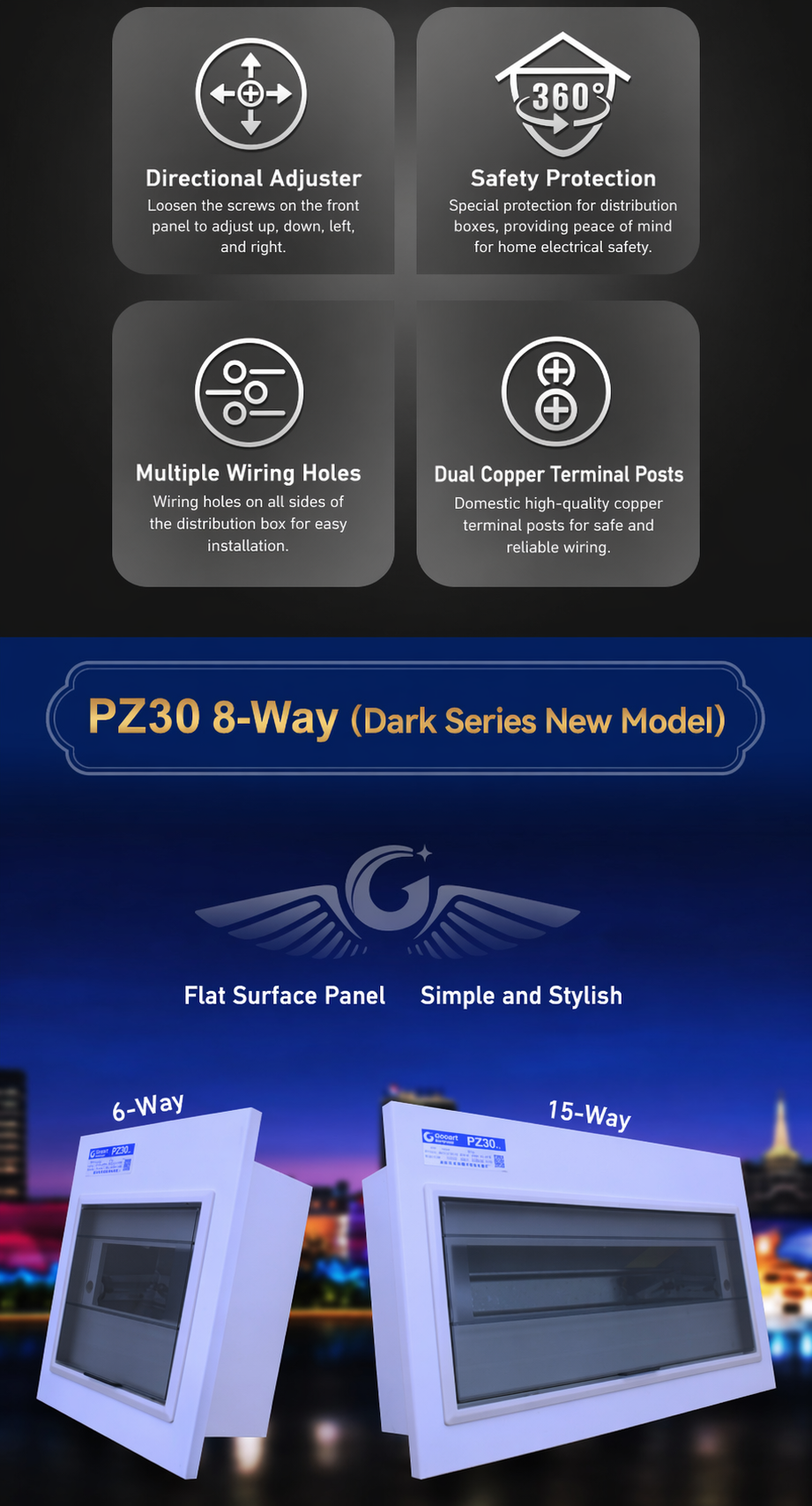

Four super practical functions, easy to fix your installation troubles

No need to remove cover, adjustable up, down, left and right

360° Safety Protection

Safe & intelligent control for home appliances

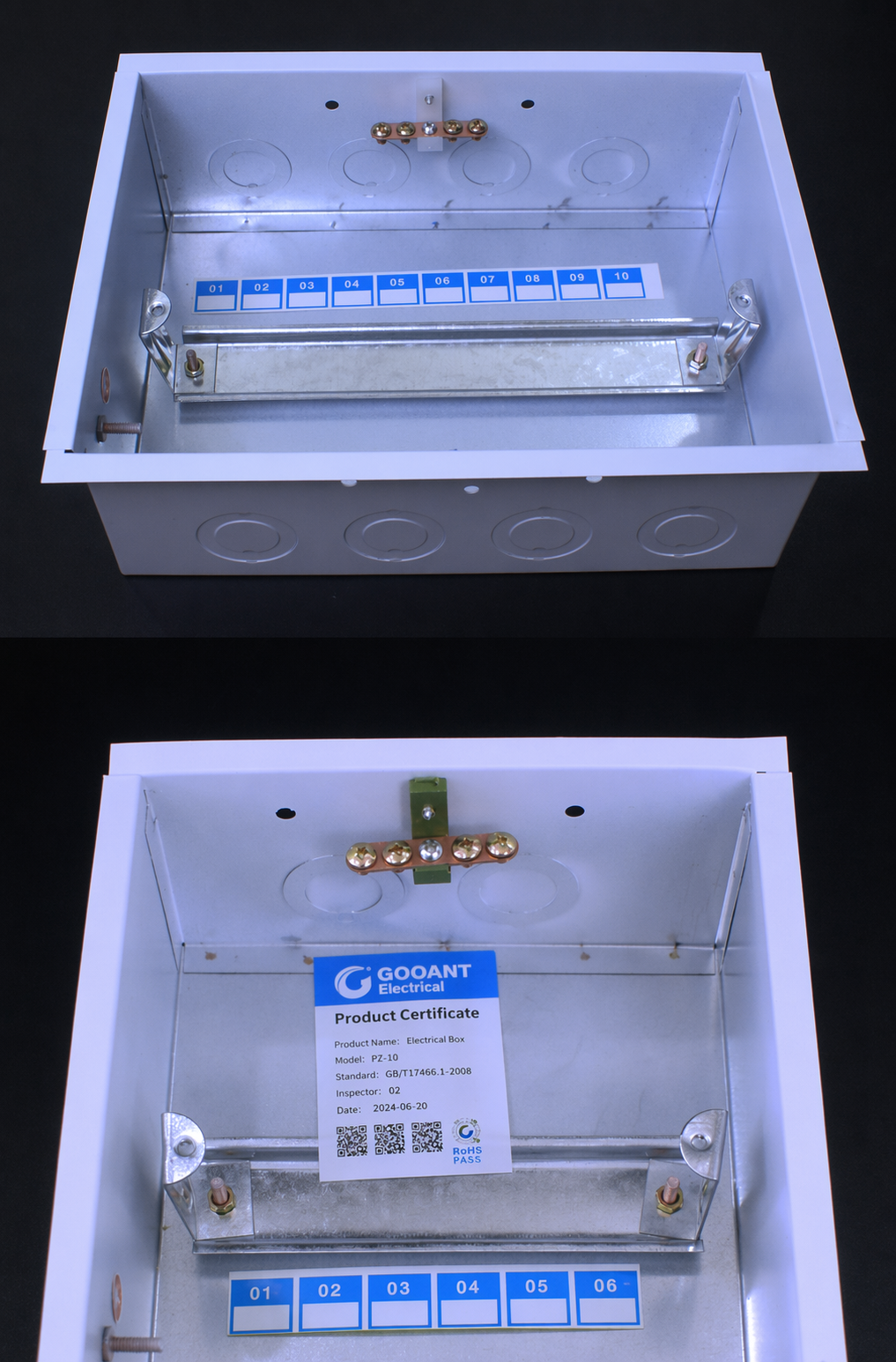

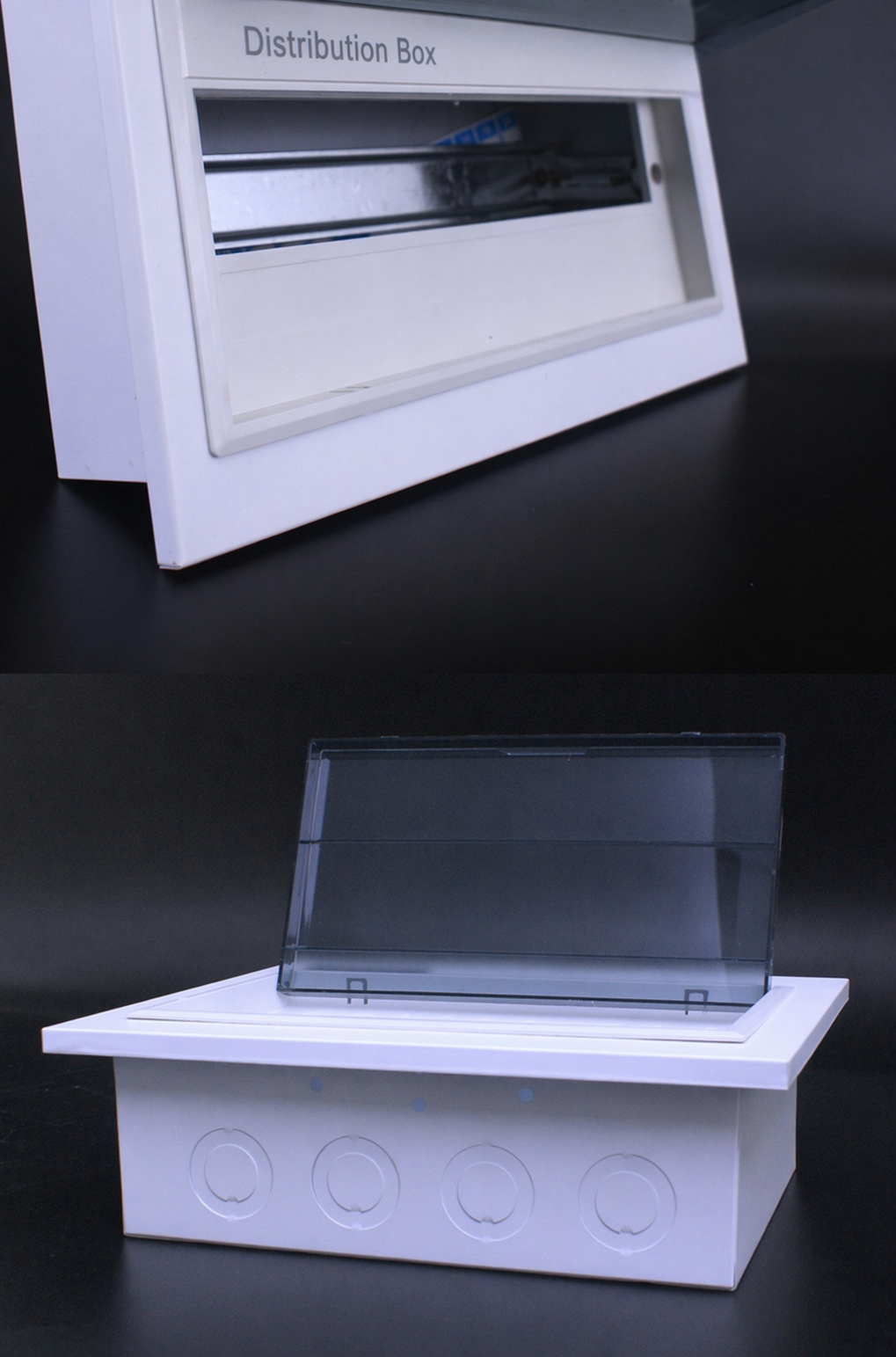

Pre‑reserved holes for fast & neat wiring installation

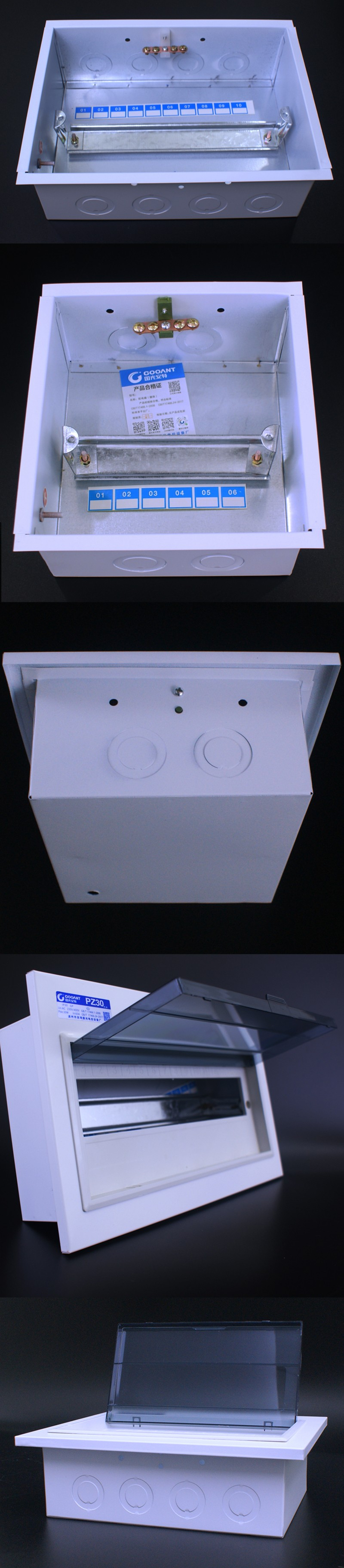

Double Row Copper Terminals

Standard copper terminals for easier wiring arrangement

Flat panel,Simple and fashionable

Please read the instructions carefully before installation

Installation Method – (Surface Mount)

Adjustable
mounting
bracket

Installation Method – (Flush Mount)

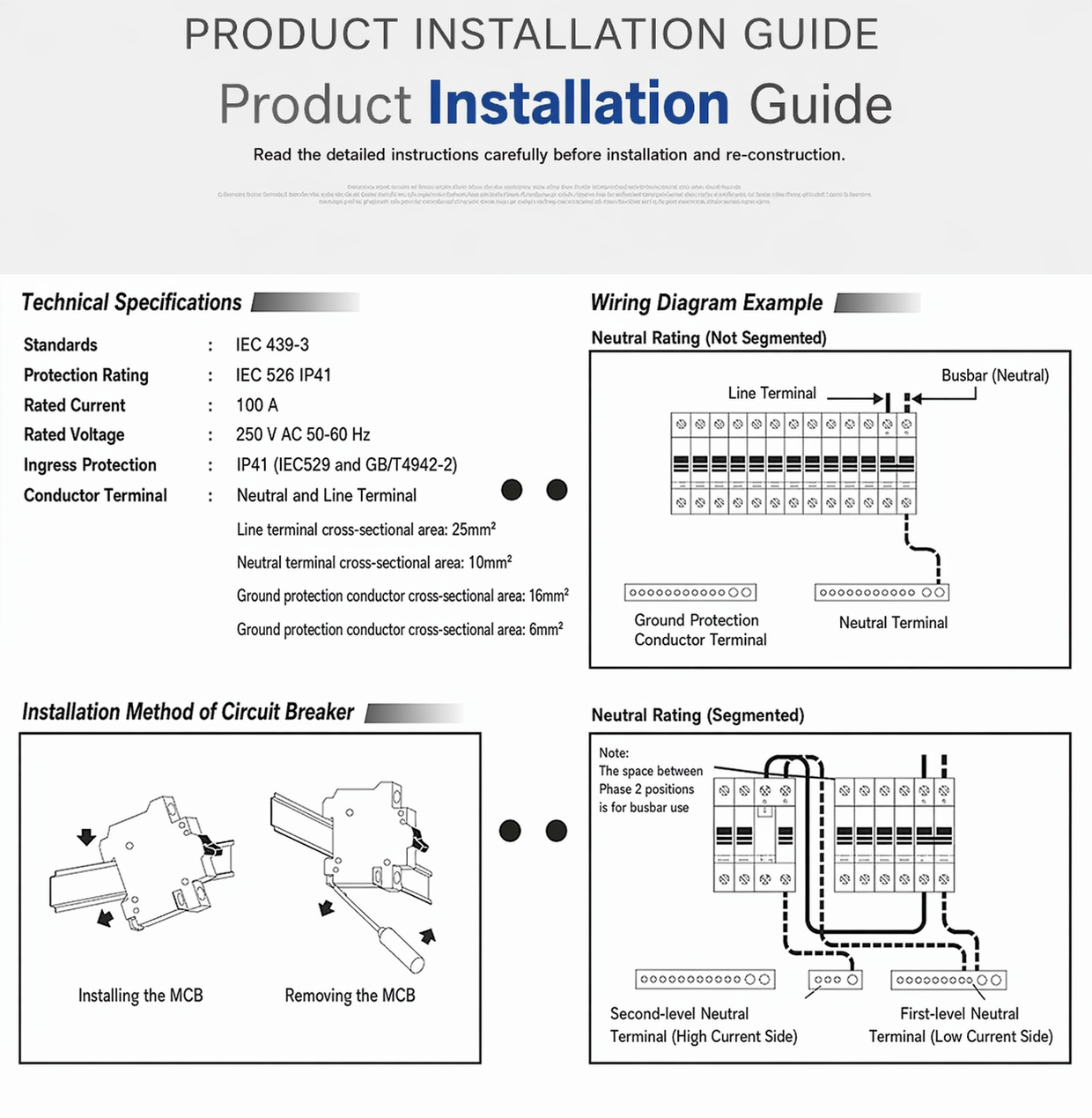

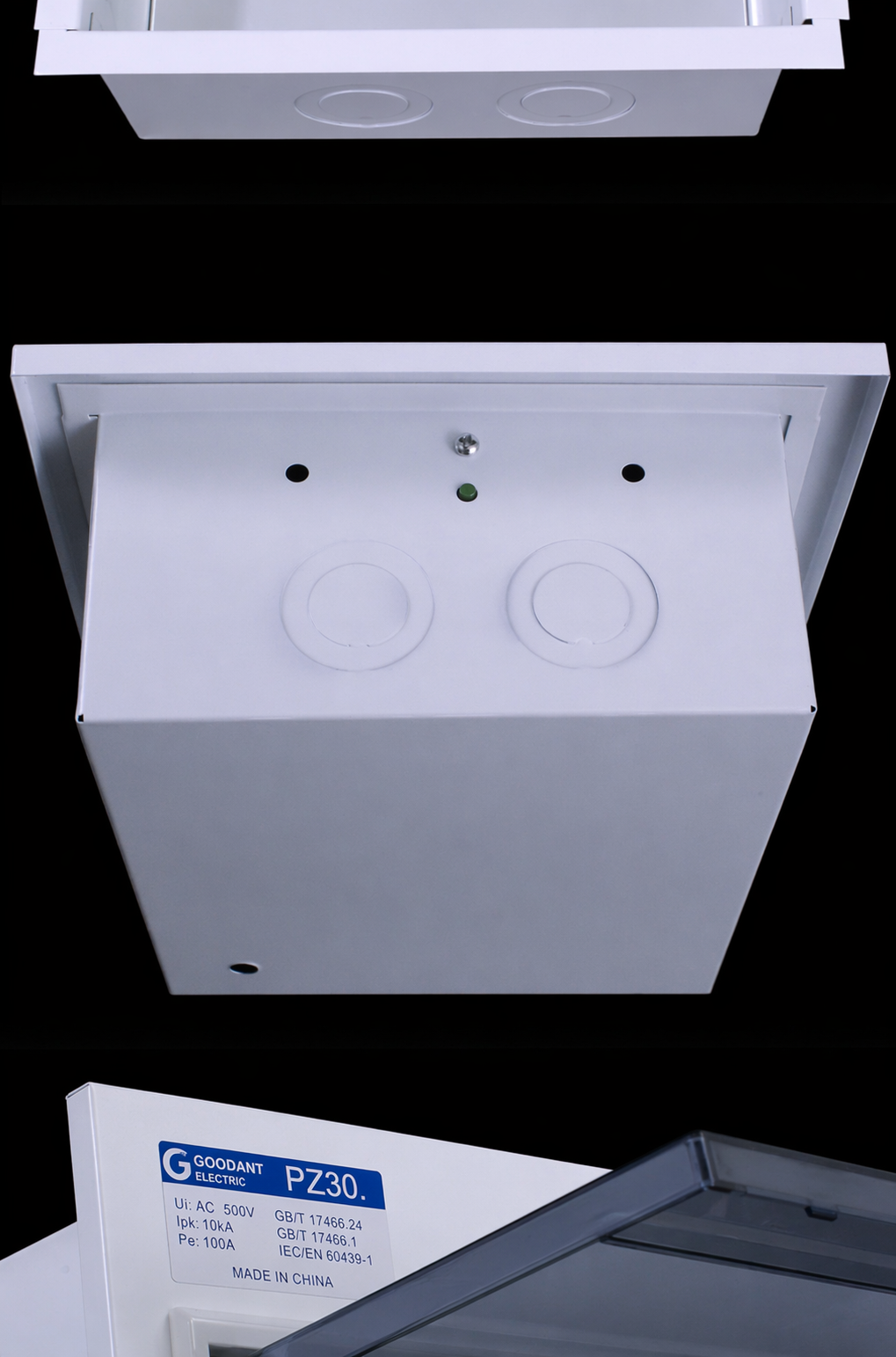

Standards	: IEC 439‑3
Degree of protection	: IEC 526 IP41
Rated current	: 100 A
Rated operational voltage	: 250 V AC 50‑60 Hz
External protection rating	: IP41 (IEC529 and GB/T4942‑2)
Terminal specifications	: Neutral terminal connection for copper conductors 25 mm² Neutral terminal connection for copper conductors 10 mm² Ground terminal connection for copper conductors 16 mm² Protective conductor terminal connection for copper conductors 6 mm²
