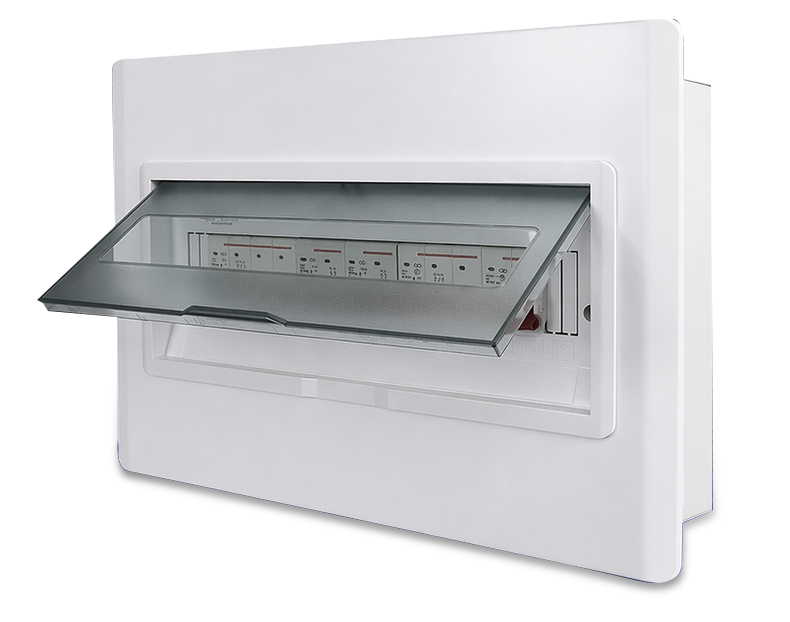

AX30 Series Surface Mount Power Distribution Box

Product Details
Related products

Parameter

Select your preferred language to play the video

-- Select Country Site --

▼

Select country switch local video

Banner Spec Table Surface Scene Material Feature Core Functions Application Scenarios Product Display

AX30 Series

surface‑mounted

Integrated molding Panel

PC Flame Retardant Cover

Model	Pcs/Ctn	Panel Size(W×H)	Flush Mount Size(W×H×D)	Surface Mount Size(W×H×D)
6 Ways	10	225*232	17820192	17820192
8 Ways	10	261*232	21420192	21420192
10 Ways	6	297*287	25025292	24925292
12 Ways	6	333*287	28625292	28525292
15 Ways	6	387*287	34025292	33925292
18 Ways	6	441*287	39425292	39325292
20 Ways	5	477*287	43025292	42925292
24 Ways Single‑Row	5	549*287	50225292	50125292
24 Ways Double‑Row	5	333*457	28642292	28542292
30 Ways Double‑Row	4	387*457	34042292	33942292
36 Ways Double‑Row	4	441*457	39442292	39342292
40 Ways Double‑Row	4	477*457	43042292	42942292
45 Ways Triple‑Row	3	387*627	34059292	33959292
48 Ways Double‑Row	3	549*457	50242292	50142292
54 Ways Triple‑Row	3	441*627	39459292	39359292
60 Ways Triple‑Row	3	477*627	43059292	42959292
72 Ways Triple‑Row	2	549*627	50259292	50159292

Flush Mount: (Back box + Panel) Total assembled height: 100mm
Surface Mount: (Back box + Panel) Total assembled height: 94mm

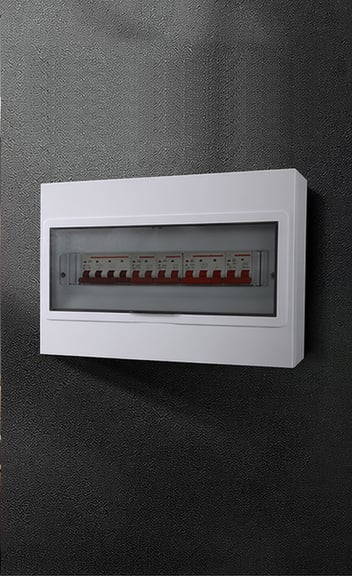

Surface

External Installation

Versatile Space Smart Choice

A fashionable choice for modern homes

Meticulous Material Selection
Detailed Display

Make home electricity smarter and safer

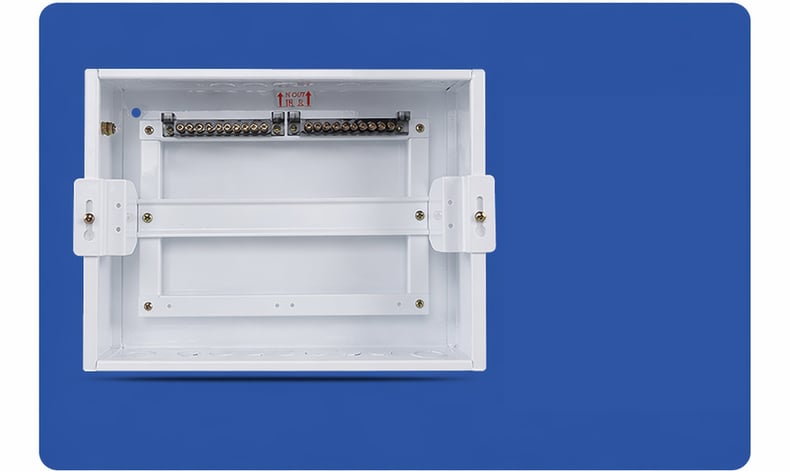

Wiring space

Spacious wiring area

The Guoguang installation box offers ample space, allowing your circuit breakers and wiring to be installed freely.

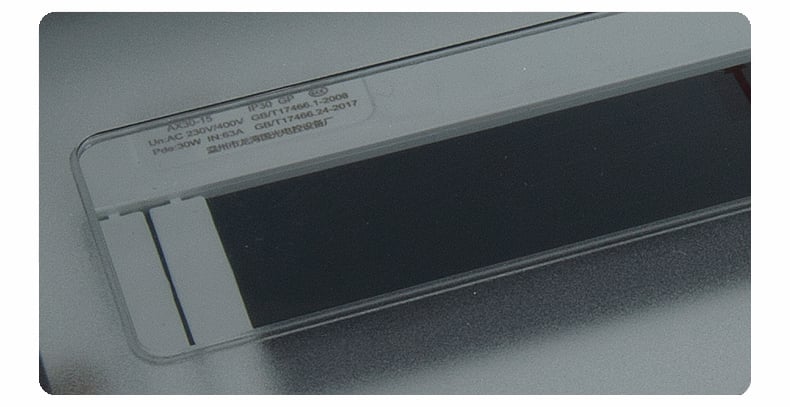

PC flame retardant cover

The cover and inner lid are made of high‑quality PC flame retardant material for enhanced safety.
Fire and flame retardant

Adjustable

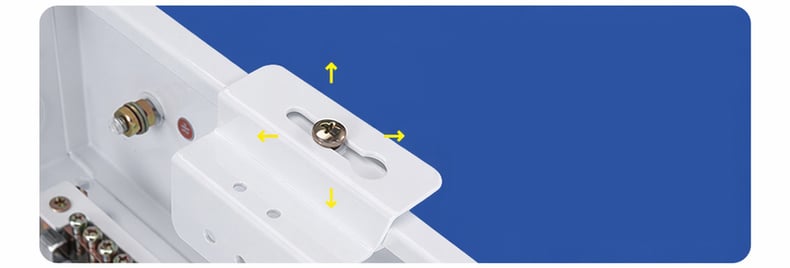

Adjustable guide rail

Guoguang installation boxes of the AX series feature adjustable guide rails, which can be adjusted up and down or left and right.

Thickened steel plate

35mm thick

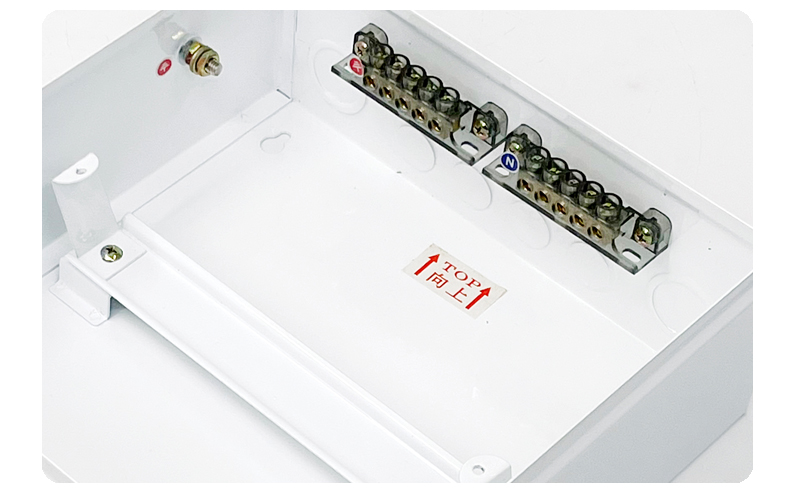

Pure copper terminal

The terminals are made of PC flame‑retardant material, with 8*10 copper columns inside.
It can accommodate 16mm² copper wire, with stainless steel grounding screws.

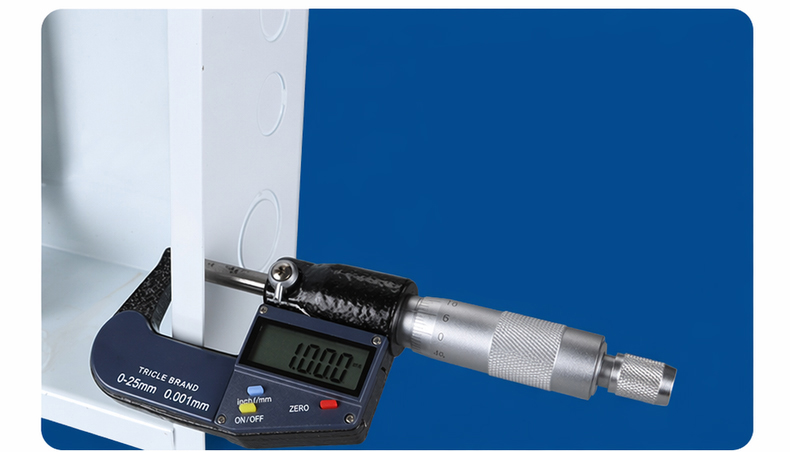

Thickened
steel plate

Made of 1.0mm thick steel plate, ensuring a stable and secure structure of the electrical box without deformation.

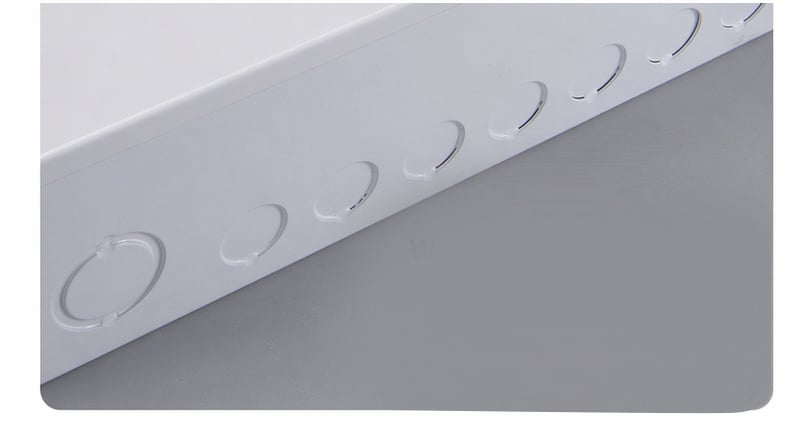

Wire entry hole

Multiple round knockouts are reserved on the top and bottom of the distribution box to allow for multiple wire entry.

Four Practical Functions

Make your installation more worry‑free

Four super practical functions, easy to fix your installation troublesFour super practical functions, easy to fix your installation troubles
Four super practical functions, easy to fix your installation troublesFour super practical functions, easy to fix your installation troubles

Safe and
Reliable

Flame
Retardant

Easy
Installation

Spacious
Interior Space
