Troubleshooting Molded Case Circuit Breaker Issues

Understanding the Trip Mechanism Inside a Molded Case Circuit Breaker

A molded case circuit breaker does more than just switch a circuit on and off. It houses two primary trip mechanisms that respond to different fault conditions. The thermal element, typically a bimetallic strip, reacts to prolonged overcurrents by bending as it heats, eventually unlatching the mechanism. The magnetic element, a solenoid or armature, reacts almost instantly to the intense magnetic field generated by a short circuit. This dual-characteristic design is what makes an MCCB suitable for protecting conductors and equipment across a wide range of fault currents. Field troubleshooting starts with recognizing which element tripped the breaker. A thermal trip after a period of heavy load points toward an overload issue. An instantaneous magnetic trip usually signals a bolted fault or a severe inrush that needs investigating before resetting.

Common Nuisance Tripping Scenarios and Quick Checks

Nuisance tripping that occurs without an obvious overload or short circuit can eat up hours of maintenance time. The usual suspects are loose connections, environmental heat, and harmonic distortion. A loose lug or bus connection generates localized heat that conducts into the breaker's thermal element, causing it to trip even when the measured line current sits below the rating. The International Electrotechnical Commission's IEC 60947-2 standard specifies temperature rise limits, and a breaker installed in a hot enclosure or near a heat source can drift into its derating zone fast. Three quick field checks often solve the mystery: tightening all termination points with a calibrated torque wrench, measuring ambient temperature inside the panel at the breaker's mounting location, and verifying that harmonics from variable frequency drives or LED banks are not pushing the true RMS current beyond what the breaker's thermal curve expects.

Thermal-Magnetic Versus Electronic Trip Units: A Practical Comparison

Modern molded case circuit breakers often come with electronic trip units that offer adjustability and precision far beyond a fixed thermal-magnetic element. Understanding the differences helps narrow down whether a trip event is a device limitation or a real system fault. In a thermal-magnetic trip unit, overload sensing relies on a bimetallic strip that is sensitive to ambient temperature, while an electronic trip unit uses current transformers and a microprocessor for more stable performance across temperature swings. Short-circuit response is fixed and non-adjustable in thermal-magnetic designs, but electronic versions allow adjustments to both instantaneous and short-time delay settings. Ground fault protection is not built into thermal-magnetic units and requires an external module, whereas electronic trip units often integrate it with adjustable pickup and time delay. Coordination with downstream devices is limited by the fixed curves of thermal-magnetic breakers, but electronic trip units offer selectable time-current curves to improve coordination. Harmonics can cause nuisance tripping in thermal-magnetic breakers because they respond to the heating effect, while electronic units measure true RMS current, reducing this issue. Field diagnostics are nonexistent in mechanical thermal-magnetic breakers, but electronic units provide trip logs, LED indicators, and sometimes communication capabilities. Choosing between these two is not just about cost. In a facility with heavy harmonic loads, the upfront price difference for an electronic trip unit often gets recovered through avoided downtime.

A Field Case: When a Chemical Plant's Breaker Kept Tripping

At a chemical processing facility in humid southern conditions, a 400-amp molded case circuit breaker feeding a mixing line began tripping intermittently during summer afternoons. The initial response was to increase the breaker's rating, but the on-site engineering team pushed back and requested a more detailed survey. Measurements showed the line current peaked at 370 amps, within the breaker's 400-amp frame. However, an infrared camera scan revealed terminal temperatures exceeding 80 degrees Celsius on the line side. The panel was mounted on a west-facing wall that absorbed direct afternoon sun, pushing the internal ambient temperature past 50 degrees Celsius. Adding ventilation louvers and re-torquing the lugs brought the terminal temperatures down to the low 60s, and the nuisance tripping stopped entirely. The takeaway was not that the breaker was defective. The installation conditions had pushed a correctly specified device into its thermal derating zone, a textbook example of why the enclosure environment matters as much as the breaker selection.

Maintenance Practices That Prevent Phantom Faults

A breaker that has sat in the closed position for years without cycling can develop mechanical sluggishness that mimics an electrical fault. Dust, corrosion, and dried lubricant inside the operating mechanism increase the force needed to trip, which can delay the magnetic response or cause the thermal element to drift out of calibration. Primary injection testing is the gold standard for verifying trip performance, per guidelines aligned with the National Electrical Manufacturers Association's AB 4 standard for field testing. A simple preventive routine reduces call-outs significantly: exercise the breaker's toggle or mechanism manually every 12 to 18 months, use compressed air to clear dust from arc chutes if accessible, and perform an insulation resistance test phase-to-phase and phase-to-ground to catch tracking issues before they escalate into faults.

The Limits of Field Troubleshooting and When to Escalate

Field troubleshooting can resolve many MCCB issues, but it has firm boundaries. If a breaker has interrupted a high-level fault close to its interrupting rating, internal contact wear or arc chute damage may exist that only a teardown or factory reconditioning can address. Breakers with electronic trip units that fail self-diagnostics typically need replacement rather than repair. In older installations, replacement breakers must match the original series rating and withstand rating, a detail that often gets overlooked when substituting a different manufacturer's product. When a breaker repeatedly trips and all wiring and load checks pass, the safest path is to escalate to a testing laboratory that can run secondary injection tests and verify the trip curve against the published time-current characteristic.

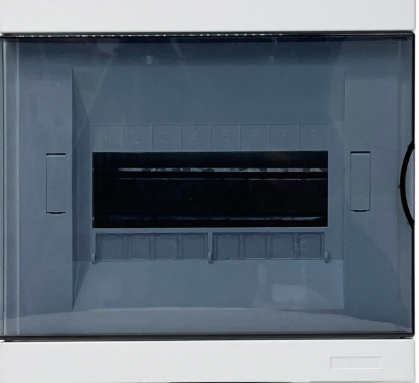

For panels that house these breakers, the integrity of the enclosure directly affects device longevity. Guoguang Electric has specialized in galvanized sheet distribution boxes for over two decades, operating under ISO 9001:2000 quality management and in strict compliance with China's GB standards. That manufacturing discipline, supported by modern production equipment and complete testing procedures, ensures that the enclosures resist corrosion and maintain structural rigidity in the industrial environments where molded case circuit breakers are most heavily depended on.
