HA Series Waterproof Distribution Box

  • Product Details
  • Related products
Parameter

HA Series
IP65
Waterproof distribution box

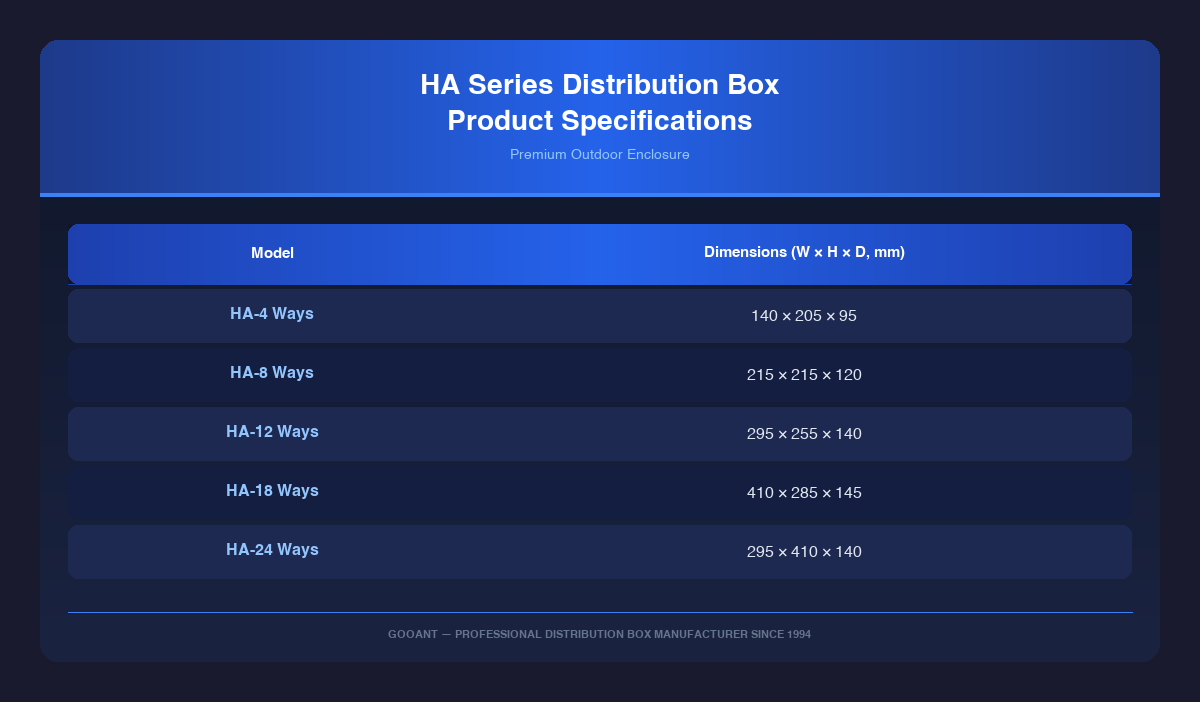

Model Product Dimension(mm) Net Weight(kg) Quantity Pcs/Box
L(mm) W(mm) H(mm)
HA‑4 140 210 100 0.55 20
HA‑8 212 207 100 0.75 20
HA‑12 296 255 140 1.3 10
HA‑18 410 285 140 1.85 10
HA‑24 295 416 140 2.25 5
HA‑36 298 570 140 2.7 5
HA Series
===============
Waterproof Distribution Box

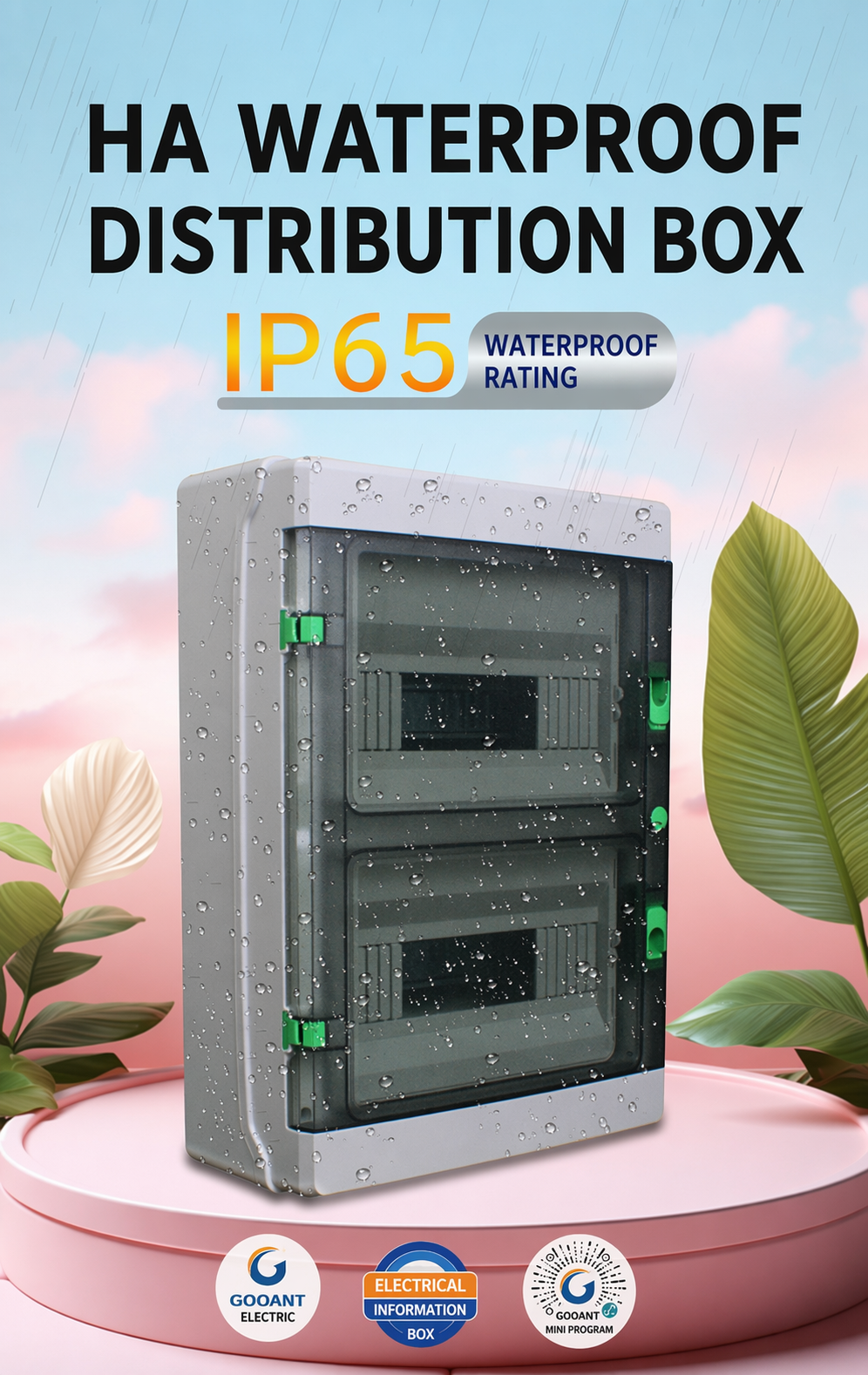

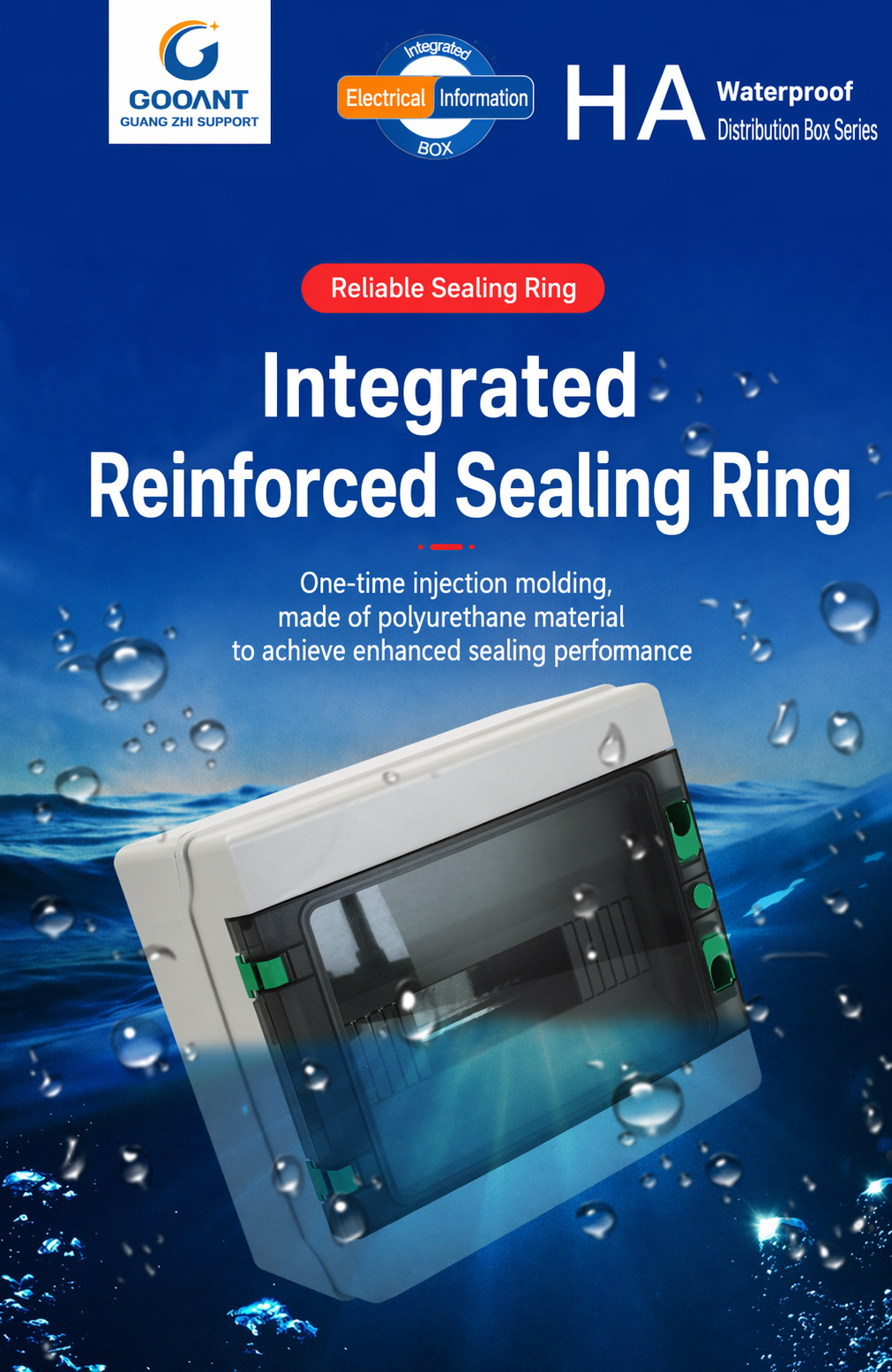

IP65 Protection Class

HA Series

Real‑life photos of
products from multiple angles

Complete set application

PRODUCT INSTALLATION GUIDE

Please read the instructions carefully before installation

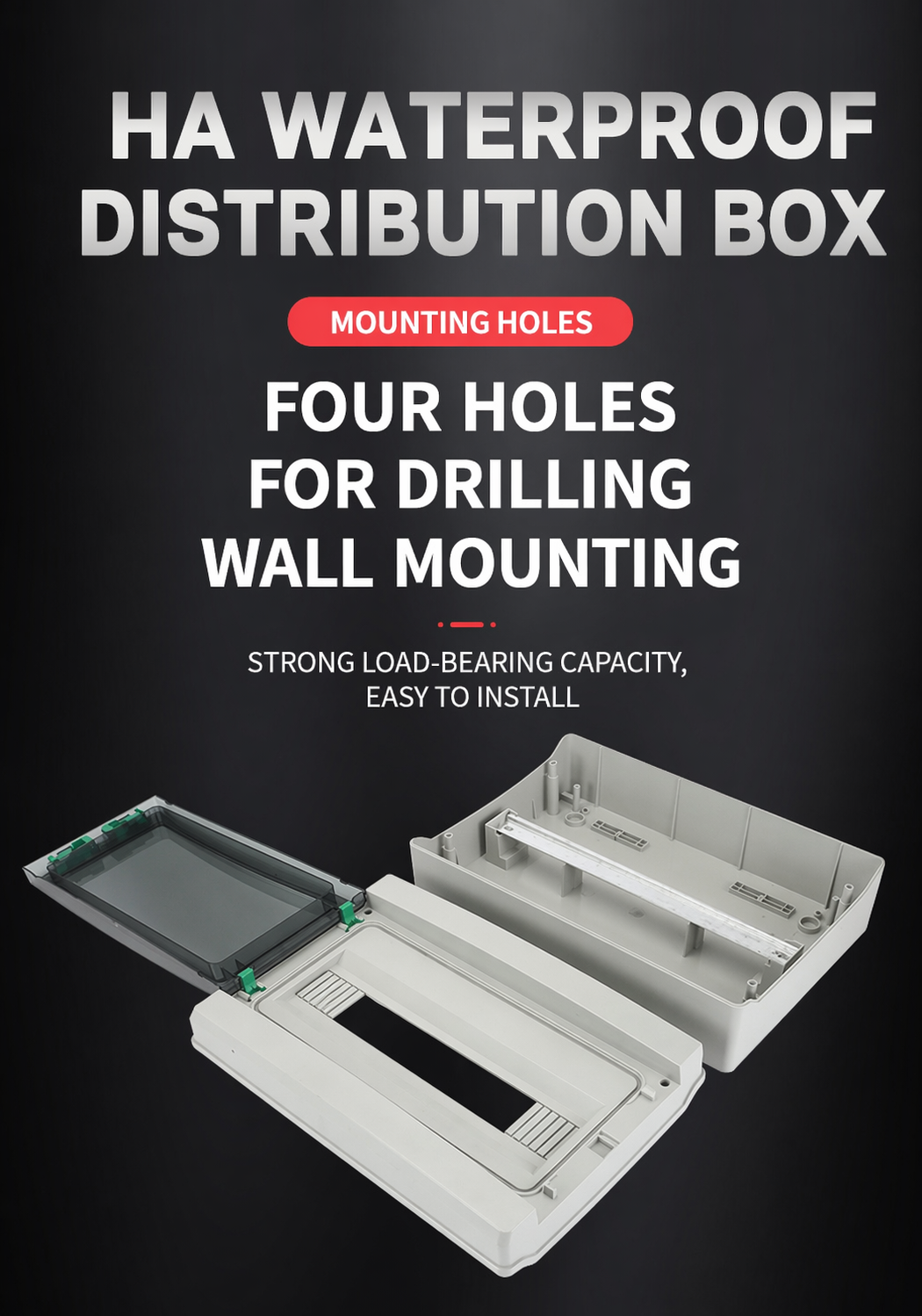

Surface Mount drawing

Installation Method – (Surface Mount)

Adjustable
mounting
bracket

Flush Mount drawing

Installation Method – (Flush Mount)

Technical Parameters

Standards : IEC 439‑3
Degree of protection : IEC 526 IP41
Rated current : 100 A
Rated operational voltage : 250 V AC 50‑60 Hz
External protection rating : IP41 (IEC529 and GB/T4942‑2)
Terminal specifications : Neutral terminal connection
for copper conductors 25 mm²

Neutral terminal connection
for copper conductors 10 mm²

Ground terminal connection
for copper conductors 16 mm²

Protective conductor terminal
connection for copper conductors 6 mm²

Circuit Breaker Installation

Installing and Removing MCB

Installing the MCB

Removing the MCB

Wiring Diagram Examples

Single‑Phase Wiring (Unsegmented)

Single‑Phase Wiring diagram

Three‑Phase Wiring (Segmented)

Note:
Reserve 2 positions for future use
Three‑Phase Wiring diagram
