AM Series
Distribution box
Real‑life photos of the entire AM series
Six Major Selling Points
Attractive & Practical
Six selling points Beautiful and practical

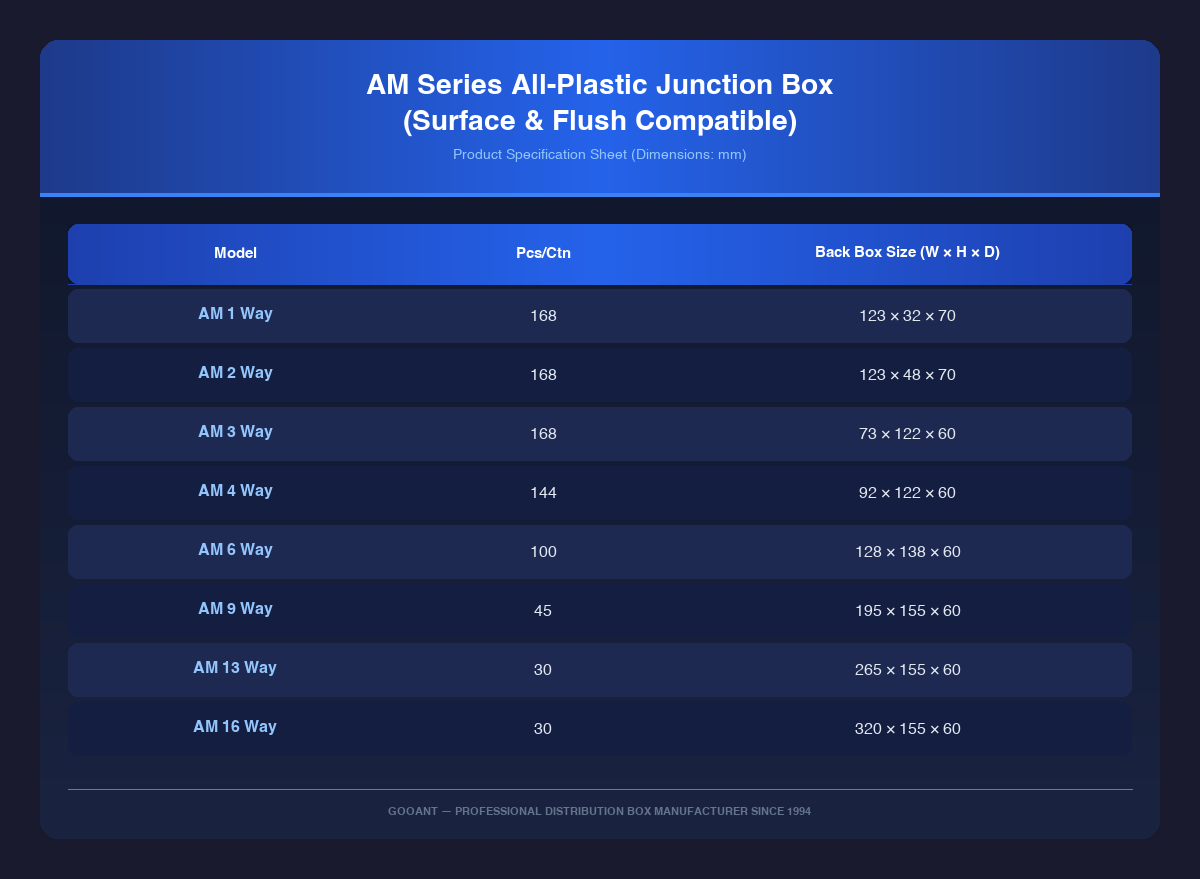

Product Detailed Information (Surface & Concealed Installation Universal)
| Model |
Pcs/Box |
Back‑seat Size(W*H*D) |
| AM 1 Ways |
168 |
123*32*70 |
| AM 2 Ways |
168 |
123*48*70 |
| AM 3 Ways |
168 |
73*122*60 |
| AM 4 Ways |
144 |
92*122*60 |
| AM 6 Ways |
100 |
128*138*60 |
| AM 9 Ways |
45 |
195*155*60 |
| AM 13 Ways |
30 |
265*155*60 |
| AM 16 Ways |
30 |
320*155*60 |

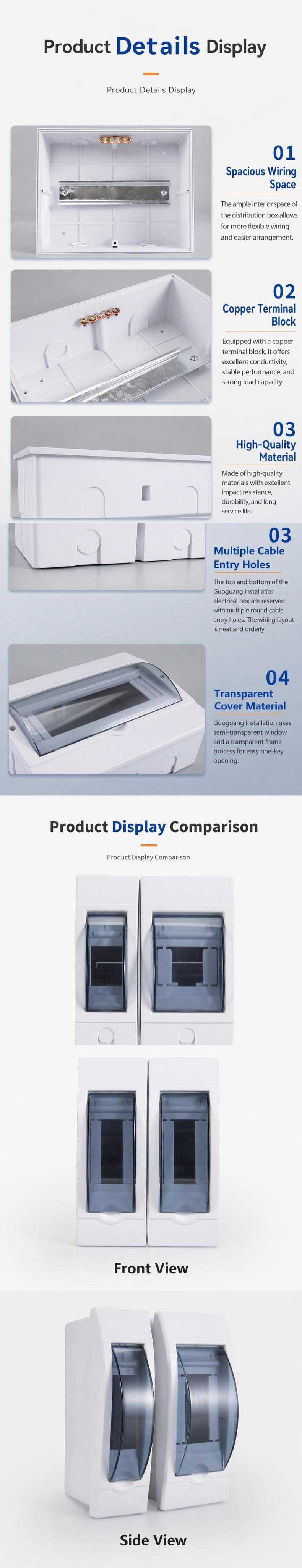

Product Details Display
Product Detail Display
01
Large Wiring Space
Reasonable internal structure design reserves sufficient wiring space. The wiring is neat and clear, making installation and maintenance easier.
02
Terminal Blocks
High‑quality terminal blocks are used for reliable electrical connection. They are sturdy, durable, and ensure stable conductivity during long‑term use.
03
Multiple Cable Entry Holes
Multiple cable entry holes are reserved on both sides and the bottom. The wiring direction is flexible, which can meet different installation requirements.
04
Transparent Engineering Cover
The transparent cover allows the internal status to be clearly observed. It is easy to inspect, maintain, and manage the circuit without removing the whole panel.
Suitable for various scenarios
Extensive application
It is suitable for all kinds of scenes
AM series
distribution box
real‑shot detail display
Product front and panel structure
Product interior and guide rail
Back and side view of the product
ProductSurface & Concealed Mount
Meet All Your Needs
Product surface and concealed installation
Concealed Installation
Minimalist Shape
Flat panel, stylish
Surface Mount
Beauty & Craftsmanship Merged
Perfect Integration
PRODUCT INSTALLATION GUIDE
Please read the instructions carefully before installation
Installation Method – (Surface Mount)
Adjustable
mounting
bracket
Installation Method – (Flush Mount)
Technical Parameters
| Standards |
: IEC 439‑3 |
| Degree of protection |
: IEC 526 IP41 |
| Rated current |
: 100 A |
| Rated operational voltage |
: 250 V AC 50‑60 Hz |
| External protection rating |
: IP41 (IEC529 and GB/T4942‑2) |
| Terminal specifications |
: Neutral terminal connection
for copper conductors 25 mm²
Neutral terminal connection
for copper conductors 10 mm²
Ground terminal connection
for copper conductors 16 mm²
Protective conductor terminal
connection for copper conductors 6 mm² |
Circuit Breaker Installation
Installing the MCB
Removing the MCB
Wiring Diagram Examples
Single‑Phase Wiring (Unsegmented)
Three‑Phase Wiring (Segmented)
Note:
Reserve 2 positions for future use
